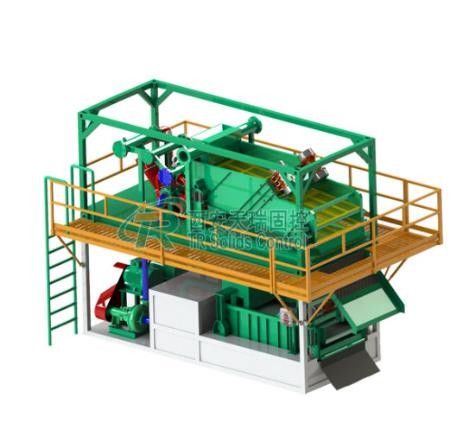

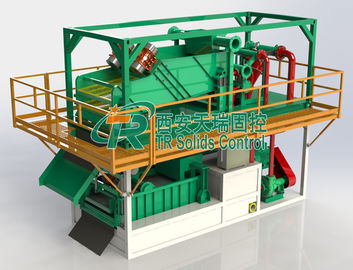

High Efficient Tunneling Boring System Drilling Mud Equipment TRDG-120

High Efficient Tunneling Boring System Drilling Mud Equipment TRDG-120
High Efficient Tunneling Boring System Drilling Mud Equipment TRDG-120
video play

Large Image :  High Efficient Tunneling Boring System Drilling Mud Equipment TRDG-120

Product Details:
Place of Origin: China
Brand Name: TR Solids Control
Certification: ISO 9001:2008
Model Number: TRDG-120
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: can be negotiated
Packaging Details: Wooden Case or Pallet
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Sets / Month
Detailed Product Description
Capacity: 120m3/h Type: Tunnel Boring System
Separation Size: D50=0.074mm Dimension: 6500*2500*7000mm
Total Weight: 10 Ton Total Installed Power: 82.8kw
Coarse Shale Shaker: TRDGS900 Fine Shale Shaker: TRDG700
High Light:

mud recycling system


mud treatment system

High Efficient Tunneling Boring System Drilling Mud Equipment TRDG-120


Main Introduction


Tunneling solids control is one of the three existing methods of tunnel construction, this method is applicable to tunnel excavation in the construction of the soft soil layer or the formation of water content is high. TR tunneling solids control system is of modular system construction. It is designed for the treatment of all kinds of slurry used in common construction techniques.


This system is beneficial to control the mud performance, enhance the quality and efficiency of the hole, fully support and ensure smooth operation of the tunneling equipment, meanwhile improve the recycling of mud. It not only saves construction costs, but also lowers the mud emissions and reduces environmental pollution. This kind of mud recycling system is economical, efficient and friendly to environment.


Main benefits of TR Tunneling Solids Control System:

  1. Modular design for fast movement.
  2. Multiple systems can be used in parallel.
  3. Strong dewatering ability.
  4. OEM for full line of shaker, desander, desilter, mud cleaner and slurry submersible pump.
  5. High G force shale shaker for high efficient slurry separation.
  6. Double deck shale shaker will increase the capacity with less foot print.

Technical Specifications of TR Tunneling Solids Control System


Single Unit Capacity
Max.Slurry Capacity 120m3/h Total Installed Power 82.8kW
Purification Desanding Separation Size d50=0.074mm Max.Water Content of Screen Underflow 30%
Coarse Shale Shaker TRDGS900 Power 2.2KW X 2
Fine Shale Shaker TRDG700 Power 1.94KW X 2
Desander Pump Flow 120m3/h Motor Power 37kW
Desilter Pump Flow 120m3/h Motor Power 37kW
Desander Hydrocyclone 12" Hydrocyclone Qty 2 pcs
Desilter Hydrocyclone 4" Hydrocyclone Qty 8 pcs
Dimension(L*W*H) 6.5m×2.5m×7m Total Weight 10t(appr.)
Solid Content Less Than 30% Max.Proportion of Slurry Treatment Less Than 1.25g/cm³(±0.1)


82.8kw Drilling Mud System, Tunnel Boring System



1. Slurry supported grab works for piles and diaphragm walls.
2. Deep drilling
3. Tunnelling
4. Aggregate processing
5. Mining Industry


Are you looking for a suitable system to recycle your tunnel mud? TR Solids Control can help. We specialize in designing and manufacturing high performance mud recycling system and solids control equipment for your needs. Shale shaker, shaker screen, desander & desilter, mud agitator, jet mud mixer, centrifugal pump are our hot products here ready to support you!

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
