High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension

High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension
High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension
video play

Large Image :  High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate
Model Number: TRSLH100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 6000 Sets Per Month
Detailed Product Description
Capacity: 60m3/h Matching Pump: TRSB4*3-11J
Motor Power: 11kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 100mm Nozzle Diameter: 25mm
Hopper Dimension: 500*500mm Burden Speed: <40kg/min
Weight: 1100kg Dimension: 2000*1650*1100mm
High Light:

mud hopper

,

mud mixing hopper

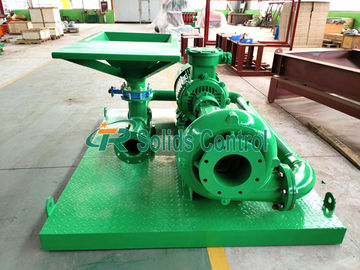

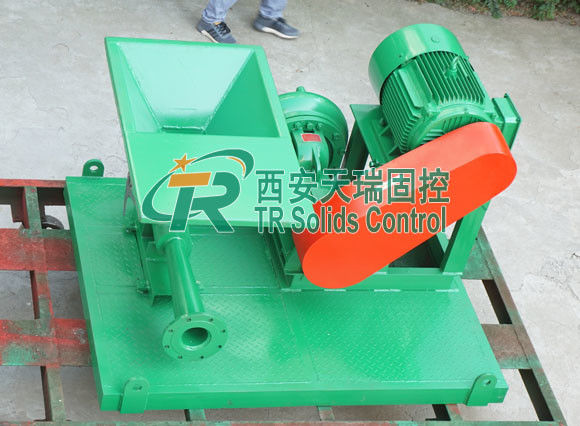

China High Quality Oilfield Drilling Equipment Jet Mud Mixer



Brief Introduction



TRSL Series Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.



TRSLH series jet mud mixer is matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in the mud tank.



Strengths of TR Drilling Jet Mud Mixer



  • Single jet mud mixer is composed of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.
  • Jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, which have good sealing performance.
  • Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head, so that the material in the tank fully mixed.



Technical Data of TRSLH Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matching Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Work Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Dimension 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



High Efficiency Oilfield Drilling Equipment 11kw Motor Power 500 * 500mm Hopper Dimension 0



TRSLH series jet mud mixers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. If you have any new inquiry of jet mud mixer, welcome to contact with us freely!



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
