Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
Home ProductsJet Mud Mixer

API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

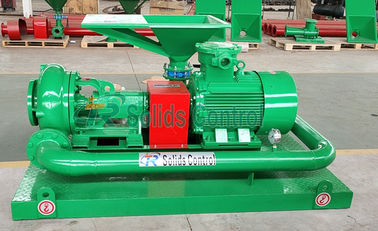

API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity

API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity
API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity
video play

Large Image :  API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSLH150-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets Per Month
Detailed Product Description
Capacity: 120m3/h Matching Pump: TRSB5*4-14J
Motor Power: 37kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 150mm Nozzle Diameter: 30mm
Hopper Dimension: 600*600mm Burden Speed: <60kg/min
Weight: 1300kg Dimension: 2000*1650*1100mm
High Light:

mud hopper

,

mud mixing hopper

API Oilfield Drilling Solid Control Mud Jet Mud Hopper Mixer for Sale



Product Introduction



TRSLH series Jet Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity. This device can satisfy the fluid weighting & mixing of solids control system used for 1500m-9000m drilling. It is the equipment to match with drilling solids control equipment, generally used for mixing and adjusting the proportion of drilling fluid, changing the density, viscosity and water loss etc. It has much excellent operation if being matched with shear pump, and also can be designed to single or double jet mud mixer as the clients’ requirements. TR jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base with pipe valves. Its hopper and centrifugal pump either can be combined or be installed separately.



Our jet mud misers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays our jet mud mixer is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time!



Advantages of TRSLH Series Jet Mud Mixer:

  1. Jet mud mixer can change the density, viscosity and water loss effectively, and also improve the mixed liquid pressure head, enhance material dispersion effect, so that the material in the tank mixed fully.
  2. Single jet mud mixer consists of one centrifugal pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.

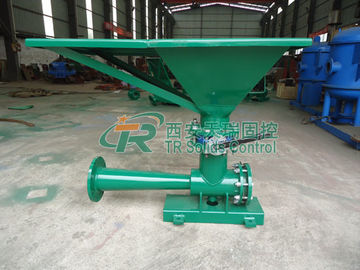

  3. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.



Technical Specifications of Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



API Oilfield Drilling Jet Mud Mixer Solid Control Mud Jet Mud Hopper 120m3/H Capacity 0



Our Services:



1. Material: Iron Q235B from BAOSTEEL with quality certificate.
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt our national famous brand explosion-proof motor.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
