200 GPM Capacity Drilling Mud System HDD Drilling Mud Treatment System

200 GPM Capacity Drilling Mud System HDD Drilling Mud Treatment System
200 GPM Capacity Drilling Mud System HDD Drilling Mud Treatment System
video play

Large Image :  200 GPM Capacity Drilling Mud System HDD Drilling Mud Treatment System

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRHDD-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: By Container
Delivery Time: 25 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Set / Month
Detailed Product Description
Capacity: 200GPM Shale Shaker: TRZS752S
Desilter: TRCN100-4N Desilter Cyclone: 4pcs
Supply Pump Model: TRSB4*3-12J Slurry Pump Model: TRSB4*3-11J
Jet Mud Mixer: TRSLH100(44kw) Weight: 5500kg
High Light:

mud recycling system


mud treatment system

Factory Price 200 GPM HDD Drilling Mud Treatment System for Sale


Product Introduction


HDD mud recycling system is designed according to the requirements of trenchless technology. It’s applied to handle the returned mud from underground in Horizontal Directional Drilling. It can separate big particles by shale shaker and mud cleaner, then stirs the mud evenly by mud agitator. Finally we can recycle the mud by using centrifugal pump connected to horizontal directional drilling system. TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.


We can also design and manufacture of directional drilling purification system, shield mud purification system, gas layer exploration mud purification system, the mining mud purification system, channel dredging mud purification system, such as series of projects.

TR Solids Control produces Drilling Fluid Management, HDD & Trenchless system, Coal bed gas Solid Control System, Sludge Dewatering Systems.Drilling Waste Management, Oil Mud Seperation and Bored Pile etc.


Structural Characterstics of HDD Mud System:

  1. Explosion-proof, rainproof and dustproof electric system to ensure construction safety and quality.
  2. Mud recovery system is designed with benefits as reasonable structure, favorable treatment process and a wide range of application fields.
  3. With simple and compact structure, light weight, foldable or dismountable walkway and guardrail, being easy for transportation and installation.
  4. Multifunctional and integrated design to meet mud purification, recycling, preparation and storage, greatly reducing overall dimensions of the tank system, meeting HDD requirements on site and space.


Technical Parameters of TR HDD Mud System


Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585

Upper Screen Area


Screen Area

2.7m2 2X2.7m2

Upper Screen Area


Mud Cleaner

TRQJ250X1S-100X8N TRQJ250X2S-100X12N



Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc

Hydroclycolone Qty

4 pcs

Desilter Cyclone

4"×8pcs 4"×12pcs

Supply Pump Model


Bottom Screen Area

1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg

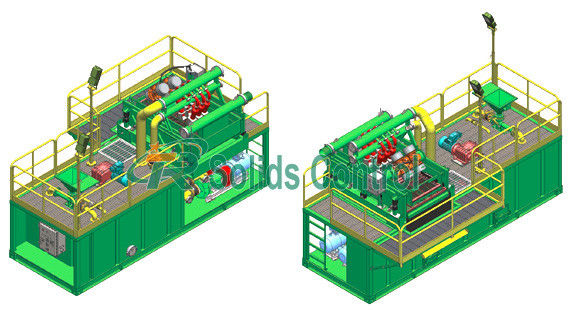

200 GPM Capacity Drilling Mud System HDD Drilling Mud Treatment System 0


TR Solids Control is a professional manufacturer of solid control system/equipment in china. we will provide our client high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients. We still adhere to the concept of Creating the maximum values and the satisfaction for our clients. Welcome your inqury and consulting!


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
