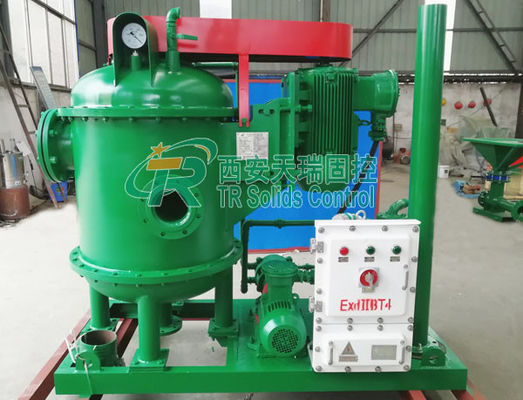

30KW High Capacity Vacuum Tank Degasser With API ISO9001 Certification

30KW High Capacity Vacuum Tank Degasser With API ISO9001 Certification
30KW High Capacity Vacuum Tank Degasser With API ISO9001 Certification 30KW High Capacity Vacuum Tank Degasser With API ISO9001 Certification

Large Image :  30KW High Capacity Vacuum Tank Degasser With API ISO9001 Certification

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRZCQ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron or nude package
Delivery Time: Within 25 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000 Sets/Month
Detailed Product Description
Body Diameter: 900m Capacity/Flow Rate: 300m3/h
Vacuum Degree: -0.03~-0.045Mpa Transmission Ratio: 1.68
Degassing Efficiency: ≥95% Main Power: 30kw
Vacuum Pump Power: 4kw Impeller Speed: 876r/min
Ex Standard: Exd II Bt 4 / IECEX / A-TEX Dimension: 2250*1330*1650mm
High Light:

vacuum degassing unit

,

vacuum degassing machine

30KW High Capacity Vacuum Degasser with API ISO9001 Certification



Main Introduction



Vacuum degasser is the 2nd purification equipment in whole drilling mud system&peroid; It serves to get rid of entrained gas in drilling fluid&peroid; Mainly remove small bubbles that a liquid film has enveloped and entrapped.



TRZCQ Vacuum Degassers are able to serve the needs of any application. It's usually installed after shale shakers. Each degasser can efficiently and effectively remove gases from gas-cutmud, thus ensuring the proper mud weight is pumped down hole. By doing so, degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, our degasser is a self-contained unit. It is monitored by level sensor to protect over suction of the fluids.



Operational Theory



Our TR vacuum degasser utilize negative pressure by vacuum pump to withdraw entrained gases from the mud. In order for this to work, mud is pumped through a venturi, which develops a negative pressure in the vessel by vacuum pump, thus sucking mud into the unit. The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.



Benefits of Drilling Vacuum Degasser

  1. Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
  2. There is a gas-water separator in vacuum degasser, which can avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
  3. Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making the vacuum degasser have high degassing efficiency up to 95%.
  4. Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.
  5. Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe is always clear.

Main Parameters of Vacuum Degasser



Model TRZCQ240 TRZCQ270 TRZCQ300 TRZCQ360
Body Diameter 700mm 800mm 900mm 1000mm
Capacity 240 m³/h 270 m³/h 300 m³/h 360 m³/h
Vacuum Degree -0.030-0.045Mpa -0.030-0.050Mpa -0.030-0.045Mpa -0.030-0.045Mpa
Transmission Ratio 1.68 1.68 1.68 1.72
Degassing Efficiency ≥95% ≥95% ≥95% ≥95%
Motor Power 15kW 22kW 30kW 37Kw
Vacuum Pump Power 2.2kW 3kW 4kW 7.5kW
Impeller Speed 860r/min 870r/min 876r/min 880r/min
Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm
Weight 1100kg 1350kg 1650kg

1800kg







































We are professional manufacturer of solid control system/equipment in china. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. We are sincerely welcome your new inquiry of our product!



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.



Company Tenet



Customer's satisfaction is the highest pursuit of TR Solids Control.
