Product Details:
Payment & Shipping Terms:
|
| Capacity: | 100m3/200m3/h | Hydrocyclone Specs: | 10" |
|---|---|---|---|
| Hydrocyclone Qty: | 1pcs/2pcs | Working Pressure: | 0.25-0.4Mpa |
| Inlet Diameter: | DN150mm | Outlet Diameter: | DN200mm |
| Separation Point: | 45um-75um | Weight: | 670kg/760kg |
| Dimension: | 1510*1360*2250mm | Bottom Shaker: | TRZS60 |
| High Light: | desanding machine,desanding equipment |
||

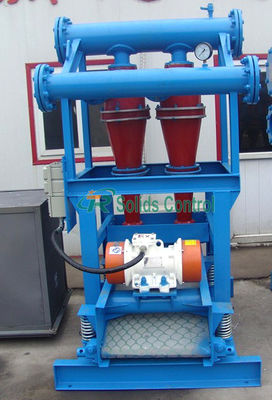

200 m3/h High Performance Mud Desander for Horizontal Directional Drilling
Main Introduction
Drilling mud desander is a kind of solid control equipment, which is commonly used in oil and gas field for drilling rigs. Drilling mud desander can be widely applied in the triple-process of the drilling fluid and when it is used efficiently, the desanders can effectively clear the solid-phase granules with diameter of more than 30 microns in the drilling fluid. It is one indispensable device for stabilizing and adjusting the drilling fluid technical parameters, suitable for those drillers as ZJ70, ZJ50 and ZJ40. And it can be used together with the sealed circulatory system of the drilling fluid.
Our Desander cyclone uses high chromium cast iron or pure polyurethane material, customers can choose independently. We can exchange it with an international brand. The cyclone has long lifetime and light weight, and easy to maintain. High separation ability and wide separation range. It can remove solid particles from 45 um to 1mm. Cyclone underflow is pressurized umbrella “wet bottom” to quickly discharge the particles in the separation zone, reducing the blocking probability.
Our Design Principle
TR desander is produced by an advanced design, careful engineering, quality materials and finest workmanship which comprising 8, 10, and 12 inches cone diameter. As desanders have various capacity based on its diameter.
Technical Parameters of Our Mud desander
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desander could be customized without bottom shaker. | |||
Key Application
Our TR Mud Desander is widely used in microtunneling, solid liquid separation, oil & gas drilling, city bored piling, trenchless HDD, tunneling construction, mining, Oil Mud Seperation, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc. We also supply other solid control equipment like vacuum degasser, mud gas separator, shale shaker, mud cleaner, decanter centrifuge, jet mud mixer, desilter, vertical cutting dryer and so on.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
