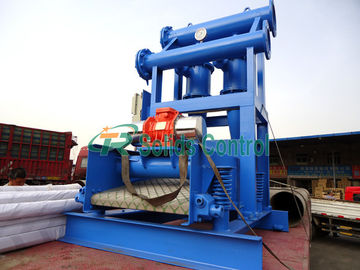

Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM

Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM
Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM
video play

Large Image :  Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRCS200-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Pcs / Month
Contact Now
Detailed Product Description
Capacity: 120m3/h Hydrocyclone Specs: 8"
Hydrocyclone Qty: 2pcs Working Pressure: 0.25-0.4Mpa
Inlet Diameter: DN125mm Outlet Diameter: DN150mm
Separation Point: 45um-75um Bottom Shaker: TRTS60
Weight: 620kg Dimension: 1510*1160*2000mm
High Light:

desanding machine

,

desanding equipment

Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM



Introduction



Mud desander is the second phase cleaning for a whole solids control system, It sits on mud tank for separate drilling cuttings 47-76 micron and above by centrifugal force. The untreated mud will feed into desander cone at the horizontal inlet at pressure, the pressure and weight will help solids particles moving beside cone wall and drop down, fluids particles will be press on top and over flow away through pipeline. There can be a shaker to collect solids particles from desander nozzle or drop onto a hoper directly.

TR Desander cyclone uses high chromium cast iron or pure polyurethane material, customers can choose independently. We can exchange it with an international brand. The cyclone has long lifetime and light weight, and easy to maintain. High separation ability and wide separation range. It can remove solid particles from 45 um to 1mm. Cyclone underflow is pressurized umbrella “wet bottom” to quickly discharge the particles in the separation zone, reducing the blocking probability.


Operation Mechanism

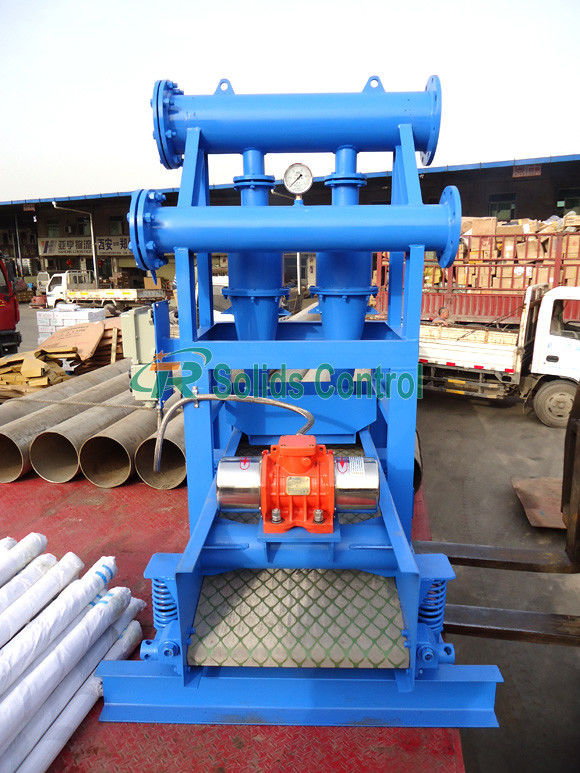

TR mud Desander includes two 12-inch(305-mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8-inch(203-mm) diameter feed manifold and a 10-inch (254-mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydroclone underflow evenly onto the screening surface.



Main Specifications of our mud desander



Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.



Oil Drilling Solid Control Desanding System Separation Point 45 - 75μM 0



Key Application



Our Mud Desander is widely used in non-digging industry, tunneling construction, oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, mining, Coal Bed Gas Solids Control System, environment protection, Water Drilling etc. At present, our mud desander has exported to many countries like Thailand, Canada, Oman, Dubai, Vietnam, Egypt, Germany, US, Greece etc. We welcome your inquiry!



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
