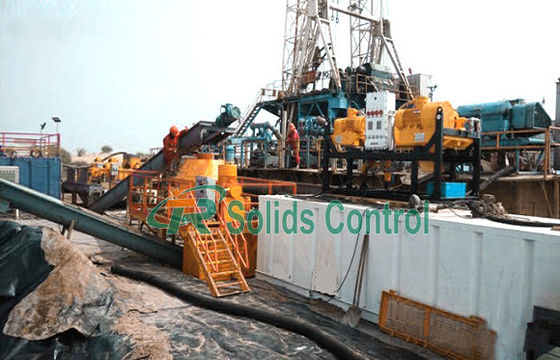

Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling

Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling
Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling
video play

Large Image :  Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API & ISO Certified
Model Number: TRDWM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 30 days after receiving 30% deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Sets / Month
Detailed Product Description
Drying Shaker: TRZS585*1pc Vertical Cutting Dryer: TRCD930C*1pc
High Speed Centrifuge: TRLW355N-1*1pc Sand Pump: TRSB4*3-11J*2pcs
Centrifuge Slurry Pump: 80YZ50-20B81pc Screw Conveyor: TRL350*3000
Shale Shaker Tank: 3000*2150*1300mm Decanter Centrifuge Tank: 9000*2200*1300mm
High Light:

mud recycling system

,

mud treatment system

Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling



Brief Introduction



In the traditional oil and gas drilling site, there will be a simple mud pit of about 1,000 cubic meters, with floor space of 1.2 acres to 1.5 acres. The pit is used to contain drilling cuttings and waste mud. In the process of exploration and development, it needs to add a variety of chemical agents in order to maintain excellent performance of mud. In this case, the mud pit left in the drilling site becomes a "culprit" easy to pollute the environment. After wells completed, mud pits are buried in situ. In China, oilfield enterprises have more than 3,000 sets of drilling rigs, there will be about 10,000 wells drilled each year. If we calculate floor space of 1,2 acres per each well, then 12,000 acres land is required. That is, at least more than 10,000 pollution points will be produced, so pollution is very serious. In order to implement and follow environment requirements, TR Solids Control developed a set of drilling waste management independently. This system makes the mud pit disappear completely, and can realize harmless treatment during drilling. TR team has made our own contribution to environmental protection.



Our oil-based drilling waste management is mainly divided into waste drying collection unit, liquid phase separation unit. As for disposal of waste mud, we need to add gel breaker processing unit.



Main Charateristics of Drilling Waste Managemet:

  1. Reduce the drilling waste quantity to save money on the disposal or further treatment.
  2. Recycling drilling fluids for reuse to save cost.
  3. For water based drilling cuttings, normally it can reduce the moisture content for easy transportation.
  4. For oil based drilling cuttings, normally it can reduce the oil on the cuttings to 3% to 5%.

Equipment List of Our Drilling Waste Management



S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.



Waste Management Mud Cleaning Equipment For Oil Gas Water Well Drilling 0



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
