Payment & Shipping Terms:

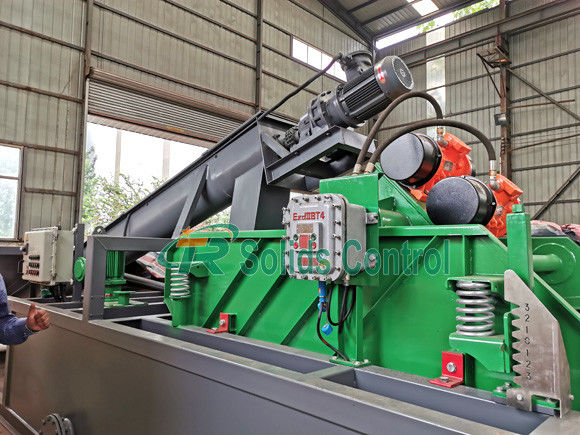

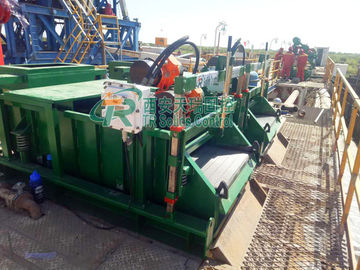

|Drying Shaker:||TRZS585*1pc||Vertical Cutting Dryer:||TRCD930C*1pc|
|High Speed Centrifuge:||TRLW355N-1*1pc||Sand Pump:||TRSB4*3-11J*2pcs|
|Centrifuge Slurry Pump:||80YZ50-20B81pc||Screw Conveyor:||TRL350*3000|
|Shale Shaker Tank:||3000*2150*1300mm||Decanter Centrifuge Tank:||9000*2200*1300mm|

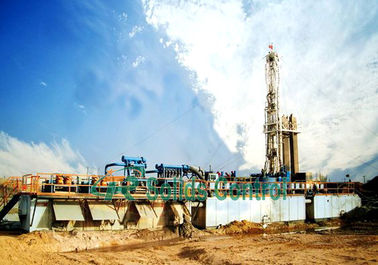

WBM High Quality Drilling Waste Management for Oil and Gas Fields
Drilling waste management system, also called as drill cutting treatment system or drilling cutting management system. According to different applications, it can be classified as water-based drilling waste management system and oil-based drilling waste management system. The main system equipments are drying shaker, vertical cutting dryer, decanter centrifuge, screw conveyor, screw pump and mud tanks. The drilling waste management system can effectively control the moisture content (6%-15%) and oil content (2%-8%) in drilling cuttings and stabilizes the liquid phase performance.
In the process of oil and gas drilling, general shallow wells would use water-based mud, and deep wells would use oil-based mud, that makes conventional solids control equipment work effectively on recovery of heavy metal and stone and useful drilling fluid. However, these cutting fluids containing heavy metals and solids (presumably oil content at 12%~18%) would caused great damage on nearby vegetation, soil, groundwater and other natural environment building and human living environment if they are not managed to emissions.
Advantages of TR Drilling Waste Management
Main Configurations of TR Drilling Waste Management
|1||Vertical Cuttings Dryer||TRCD930 with option for VFD or fixed speed|
|2||Decanter Centrifuge||TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
|3||Screw Pump||Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
|4||Skid with catching tank||Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
|5||Telescopic Skid||Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
|6||Electric Cradle||0.5 Tons electric cradle for lifting the components of vertical dryer|
|7||Electric Control System||Two lighting system,electrical control boxes and cables and plugs for operation the complete system.|
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
