Horizontal Directional Drilling Mud Circulation System 200GPM Capacity

China Horizontal Directional Drilling Mud Circulation System 200GPM Capacity supplier
Horizontal Directional Drilling Mud Circulation System 200GPM Capacity supplier Horizontal Directional Drilling Mud Circulation System 200GPM Capacity supplier Horizontal Directional Drilling Mud Circulation System 200GPM Capacity supplier

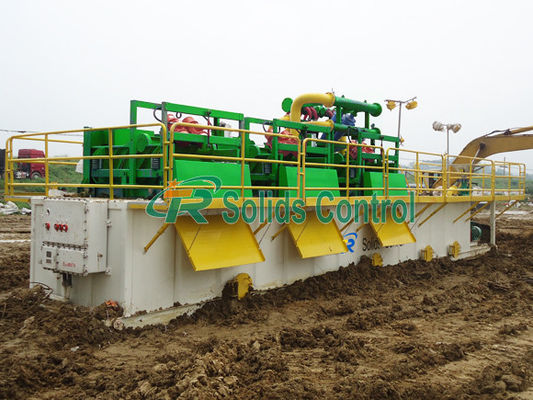

Large Image :  Horizontal Directional Drilling Mud Circulation System 200GPM Capacity

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRHDD-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: By Container
Delivery Time: 25 days after receiving 30% deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10 Set / Month
Contact Now
Detailed Product Description
Capacity: 200GPM Shale Shaker: TRZS752S
Hydrocyclone: 4" Hydrocyclone Qty: 4 Pcs
Supply Pump Model: TRSB4*3-12J Slurry Pump Model: TRSB4*3-11J
Mud Hopper: TRSLH100 Gross Power: 44 KW
Weight: 5500kg Dimension: 4000*2360*2940mm

High Standard Mud Circulation System for Horizontal Directional Drilling



Introduction



Horizontal directional drilling short name is HDD. This technology has wide application in oil and gas pipelines crossing the rivers, lakes, highway, railway hub and other obstacles and important area. HDD site is all in large no-excavation area and do not allow to make mud discharge randomly, so it is very important to equip with mud recovery system. TR Solids Control is a professional manufacture in designing and customizing HDD mud recovery system.



TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.



Process of HDD mud circulation system



The whole system consists of a mud recovery treatment unit and a mud preparation unit.

  1. Before construction, using mud mixing device to blend fresh water with mud material, achieving the purpose of mud preparation;
  2. Using mud pump to supply the prepared slurry to the wellhead;
  3. Return of waste mud from the wellhead is pumped to the shale shaker in the mud treatment unit, and the waste mud is removed through the mud shale shaker to remove a large amount of the waste solid particles. The treated slurry liquid will continue to be supplied to mud cleaner through sand pump, after treatment the liquid can meet using requirements. Because after this system treated, solid particles content in slurry liquid is 75 microns.



Functions of HDD mud recovery system

  1. Reduce environmental pollution, and be friendly.
  2. Mud tanks flexible options.
  3. You can recycle the used mud, and reduce construction costs.
  4. Reduce the preparation work of mud, also reduce labor cost.



Technical Paremeters of TR HDD Mud Recovery System



Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585

Upper Screen Area

0.875m2

Screen Area

2.7m2 2X2.7m2

Upper Screen Area

1.35m2

Mud Cleaner

TRQJ250X1S-100X8N TRQJ250X2S-100X12N

Hydrocyclone

4"

Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc

Hydroclycolone Qty

4 pcs

Desilter Cyclone

4"×8pcs 4"×12pcs

Supply Pump Model

TRSB4X3-12J

Bottom Screen Area

1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg























Horizontal Directional Drilling Mud Circulation System 200GPM Capacity



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
