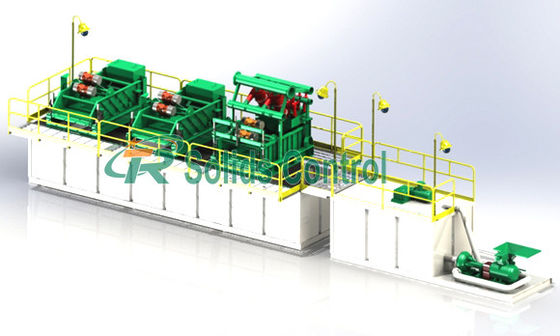

Capacity: 500GPM Shale Shaker: TRZS703/TRZS585
Mud Cleaner: TRQJ250*1S-100*8N Desilter Cyclone: 4"*8pcs
Supply Pump Model: TRSB6*5-11J*2pcs Slurry Pump Model: TRSB6*5-12J
Jet Mud Mixer: TRSLH150-35(37kw) Mud Agitator: TRJBQ7.5
Weight: 17000kg Dimension: 10000*2360*4228mm

High Performance Mud Recycling System for Horizontal Directional Drilling



Introduction



HDD mud recycling system is designed according to the requirements of trenchless technology. It’s applied to handle the returned mud from underground in Horizontal Directional Drilling. It can separate big particles by shale shaker and mud cleaner, then stirs the mud evenly by mud agitator. Finally we can recycle the mud by using centrifugal pump connected to horizontal directional drilling system. TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.


TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.



Main Composition of HDD mud recovery system



The whole system consists of a mud recovery treatment unit and a mud preparation unit.

  1. Before construction, using mud mixing device to blend fresh water with mud material, achieving the purpose of mud preparation;
  2. Using mud pump to supply the prepared slurry to the wellhead;
  3. Return of waste mud from the wellhead is pumped to the shale shaker in the mud treatment unit, and the waste mud is removed through the mud shale shaker to remove a large amount of the waste solid particles. The treated slurry liquid will continue to be supplied to mud cleaner through sand pump, after treatment the liquid can meet using requirements. Because after this system treated, solid particles content in slurry liquid is 75 microns.



Function of HDD mud recovery system



  1. Mud recovery system is designed with benefits as reasonable structure, favorable treatment process and a wide range of application fields.
  2. Multifunctional and integrated design to meet mud purification, recycling, preparation and storage, greatly reducing overall dimensions of the tank system, meeting HDD requirements on site and space.
  3. Explosion-proof, rainproof and dustproof electric system to ensure construction safety and quality.
  4. With simple and compact structure, light weight, foldable or dismountable walkway and guardrail, being easy for transportation and installation.





Technical Data of TR HDD Mud Recovery System



Model TRHDD-200 Model TRHDD-500 TRHDD-1000
Capacity 200GPM (50m3 /h) Capacity 500GPM (120m3 /h) 1000GPM (240m3 /h)
Shale Shaker TRZS752S Shale Shaker TRZS703/TRZS585 TRZS703/TRZS585

Upper Screen Area

0.875m2

Screen Area

2.7m2 2X2.7m2

Upper Screen Area

1.35m2

Mud Cleaner

TRQJ250X1S-100X8N TRQJ250X2S-100X12N

Hydrocyclone

4"

Mud Cleaner

Mud Cleaner

10"×1pcs 10"×2pc

Hydroclycolone Qty

4 pcs

Desilter Cyclone

4"×8pcs 4"×12pcs

Supply Pump Model

TRSB4X3-12J

Bottom Screen Area

1.35m2 2.12m2
Slurry Pump Model TRSB4X3-11J Supply Pump TRSB6X5-11J*2 TRSB8X6-11J*2
Mud Hopper TRSLH100 Slurry Pump TRSB6X5-12J TRSB8X6-12J
Gross Power 44kW Jet Mud Mixer TRSLH150-35(37KW) TRSLH150-35(45KW)
Total Volume 5m3 Mud Agitator TRJBQ7.5 TRJBQ7.5
Dimension 4000×2360×2940mm Gross Power 130kW 184kW
Weight 5500kg Total Volume 15m3 30m3
    Dimension 10000×2360×4228mm 12100×2630×4438mm
    Weight 17000kg 20000kg























High Performance Mud Recycling System For Horizontal Directional Drilling



TR Solids Control is a top manufacturer of Horizontal Directional Drilling(HDD) Mud Recovery System. Our mud system has been exported to many countries for HDD and CBM drilling operation, especially popular in Romania, UAE, Nigeria, Indonesia, India, Argentina etc. TR Shale shaker, mud cleaner, desilter & desander, mud agitator, mud gun, jet mud mixer, centrifugal pump, screw pump, submersible slurry pump, shear pump are with good price and top quality. We will provide one-stop service to you!
