Payment & Shipping Terms:
|Max. Slurry Capacity:||120m3/h||Coarse Shale Shaker:||TRDGS900|
|Fine Shale Shaker:||TRDG700||Desander & Desilter Pump:||120m3/h|
|Desander Cyclone:||12"||Desilter Cyclone:||4"|
|Total Installed Power:||82.8kw||Dimension:||6500*2500*7000mm|

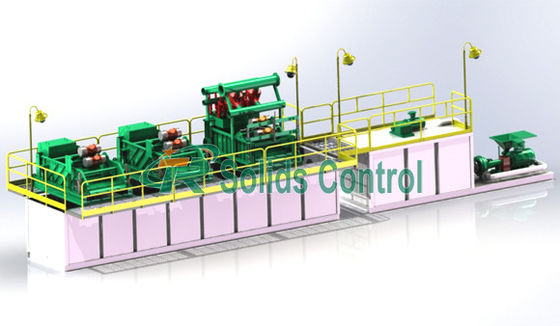

Economical Drilling Mud Recycling System with High Efficiency / Tunneling Mud System
An efficient TBM slurry separation plant is the basis for the successful use of slurry-supported tunnel boring machines(TBM). TR tunneling Mud system is of modular system construction. It is designed for the treatment of all kinds of slurry used in common construction techniques.TR Solids Control utilize our shale shakers, desander desilter, as well as decanter centrifuges to processes separate and remove the excavated solids from the bentonite suspension – a mixture of water and thixotropic clay. The cleaned fluid is then transferred back to the slurry circulation.
This system is beneficial to control the mud performance, enhance the quality and efficiency of the hole, fully support and ensure smooth operation of the tunneling equipment, meanwhile improve the recycling of mud. It not only saves construction costs, but also lowers the mud emissions and reduces environmental pollution. The economical mud system can be used for different industries: Horizontal Directional Drilling (HDD), Piling, Tunneling Construction (TBM), Underground Continuous Concrete Wall, Water well, Geological prospectig, Dry tailing row, etc.
Advantages of TR Tunneling Solids Control System:
Technical Data of TR Tunneling Solids Control System
|Single Unit Capacity|
|Max.Slurry Capacity||120m3/h||Total Installed Power||82.8kW|
|Purification Desanding Separation Size||d50=0.074mm||Max.Water Content of Screen Underflow||30%|
|Coarse Shale Shaker||TRDGS900||Power||2.2KW X 2|
|Fine Shale Shaker||TRDG700||Power||1.94KW X 2|
|Desander Pump Flow||120m3/h||Motor Power||37kW|
|Desilter Pump Flow||120m3/h||Motor Power||37kW|
|Desander Hydrocyclone||12”||Hydrocyclone Qty||2 pcs|
|Desilter Hydrocyclone||4”||Hydrocyclone Qty||8 pcs|
|Solid Content Less Than||30%||Max.Proportion of Slurry Treatment Less Than||1.25g/cm³(±0.1)|
5.Slurry supported grab works for piles and diaphragm walls.
Are you looking for a suitable system to recycle your tunnel mud? TR Solids Control is your best choice. We specialize in manufacturing high performance mud recycling system and solids control equipment for your needs. Shale shaker, shaker screen, desander & desilter, mud agitator, jet mud mixer, centrifugal pump are our hot products. Welcome you to inquiry at any time!
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
