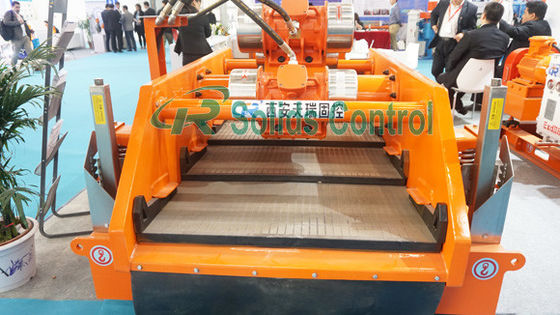

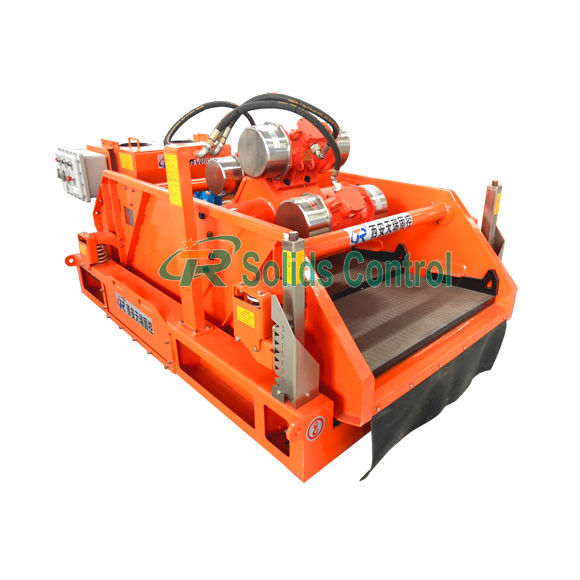

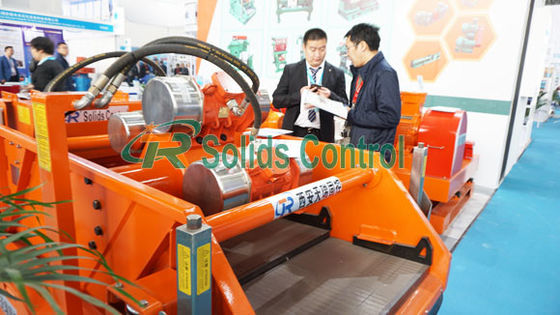

Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling

Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling
Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling
video play

Large Image :  Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRZS585
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 Sets / Month
Detailed Product Description
Capacity: 130m3/h Motor Power: 1.72kw*2
Screen Area: 2.7m2 Double Amplitude: 6mm
Ex Standard: ExdllBt4 Vibration Motion: Linear Motion
Screen Specs.: (585*1165mm)*3pcs Vibration Strength: ≤7.1G(Adjustabe)
Adjustment Angle: -1°-+5° Weight: 1600kg
High Light:

drilling fluid equipment

,

mud shaker

Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling



Product Introduction



Drilling Mud Shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. It's used in many industries, such as oil and gas drilling, coal cleaning(CBM), horizontal directional drilling (HDD), mining, etc.



Drilling shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present shale shaker has been given a new mission, namely as a basic equipment in drilling waste management. It’s used as a primary separation equipment in sludge treatment system.



Design Features of Our Mud Shale Shaker:



  • Hopper type feed mode reduces feed speed.
  • Screen box angle is mechanical and adjustable.
  • Martin or OLI vibration motor.
  • Wedge-type compaction device facilitates fast replacement of screen.
  • Schneider or Siemens electrical components.
  • Overall heat treatment, long time work.
  • Vibration strength is 7.5G, adjustable.



Technical Parameters of TR Mud Shale Shaker



(Model) TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Large Capacity Linear Motion Shale Shaker For Trenchless Horizontal Direction Drilling 0



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
