300-600kg/H Mud Treatment System Environmental Protection Equipment

300-600kg/H Mud Treatment System Environmental Protection Equipment
300-600kg/H Mud Treatment System Environmental Protection Equipment
video play

Large Image :  300-600kg/H Mud Treatment System Environmental Protection Equipment

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API,ISO
Model Number: TRWNT-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 35 days after receiving 30% deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 Set / Month
Detailed Product Description
Oven Dry Sludge Capacity: 300~600kg/h Solid Content In Sludge: 10000~20000mg/L
Sludge Capacity: 18~24 M3/h Clear Liquid Solid Content: 0.03%
Inlet Ludge Water Content: 75~80% Outlet Sludge Water Content: Less Than 30%
Electricity Consumption: 4.4kw/h Flushing Water Consumption: 80L/h
Addition Rate Of Polymer Flocculant: DS ~0.8% Water Supply Pressure: 0.1~0.2MPa
Net Weight: 3500kg Size: L5200×W2100×H2100 Mm
High Light:

mud recycling system

,

mud treatment system

Sludge Dewatering System



Model TRWNT-20
Oven dry sludge capacity 300~600kg/h
Solid content in sludge 10000~20000mg/L
Sludge capacity 18~24 m3/h
Clear liquid solid content 0.03%
Inlet ludge water content 75~80%
Outlet Sludge water content Less than 30%
Electricity consumption 4.4kw/h
Flushing water consumption 80L/h
Addition Rate of Polymer Flocculant DS ~0.8%
Maintaining management frequency 5min/day
Water supply pressure 0.1~0.2MPa
Net weight 3500kg
Operating weight 4550kg



Sludge Dewatering System

































Setting environment



Temperature Scope of Application -10℃ ~ +40℃ (No ice.)
Applicable range of humidity Max. 90%RH (No condensation)
Height Below altitude 1000m
Supply voltage Three-phase 380V 50Hz
Water supply pressure 0.1~0.2MPa



※ This Sludge Dewatering System belongs to indoor specifications. Please set it indoors.

※ Please set it up according to the specifications and drawings.

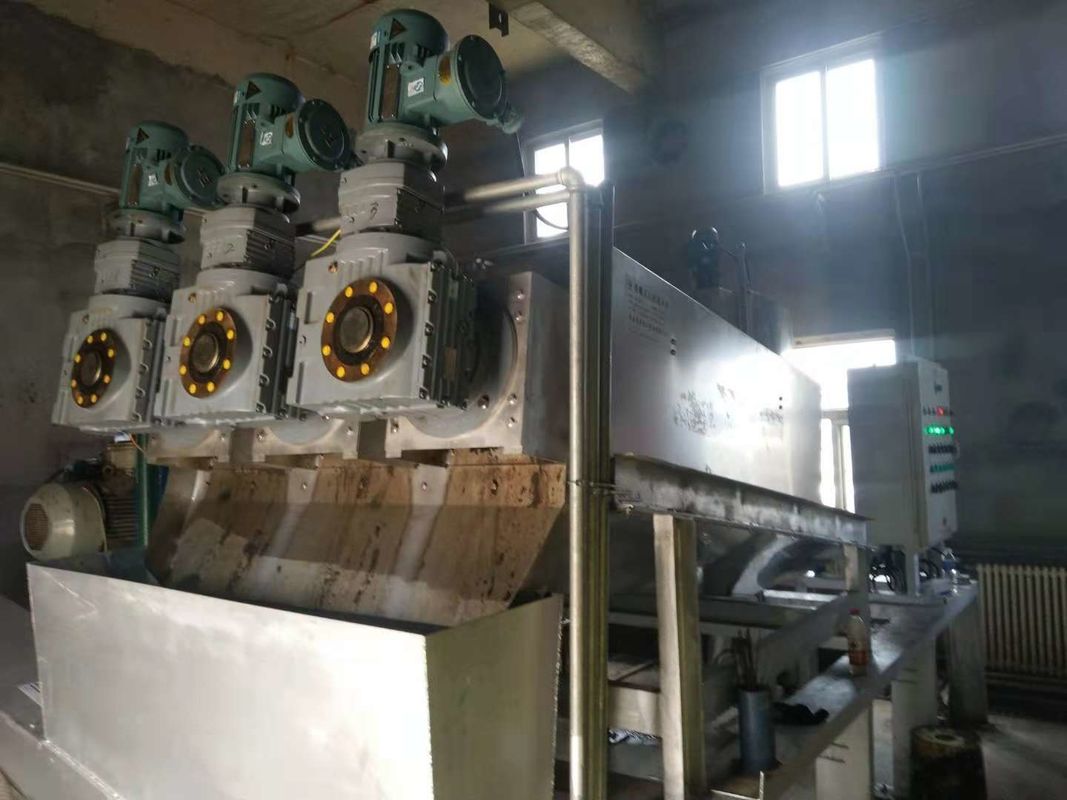

300-600kg/H Mud Treatment System Environmental Protection Equipment 1



TRWNT-20 Technical Parameter
Name Sludge dewaterer with laminated screw
Model TRWNT-20
Dewater treatment type Spiral Propulsion Extrusion
Oven dry sludge capacity 300~600 Kg∕h
Size L5200×W2100×H2100 mm
Power 4.4kw
Main Equipment Configuration Item Specification parameter
Screw body Diameter * length DN400mmx2700mm
Number 3
Texture of material SS304
Supporting plate Texture of material:SS304
Control mode The main body of each group of snails can be opened or stopped independently.
Assembly type Subsection design of main body, convenient for later maintenance, double-deck design of support plate, ensure stable operation of equipment
Helix axis Number 3
Texture of material SS304
Treatment process Integral finishing after welding, blade strengthened with alloy tungsten carbide
Hardness 1100HV
Flocculation mixing tank Size 900 x 900 x 1500 mm
Number 1 set
Texture of material SS304
Capacity About 950[L]
Mixer Quantity:1 Material:SS304
Sewage inlet DN100 flange(JB/T81-94,PN1.0MPa)
overflow port ¢100 pvc
Dosing port ¢25 pvc
Vent ¢65 SS304
Driving motor Power 1.1kw
Protection level IP54
Insulation grade F
Quantity 3
Speed 1.96-4.9r/min
Reduction ratio 286.4
Mixing Motor Power 1.11kw
Protection level IP54
Insulation grade F
Quantity 1
Speed 25r/min
Reduction ratio 54.7
Flushing device Type Tapered water column
Pressure 0.2MPa
Flushing water intake ¢25 pvc
Injector Material: Engineering Plastics
Spray pipe Material:SS304,Size:¢25
Solenoid valve Pipe diameter ¢25
Quantity 1
Texture of material Brass



Diameter parameters of each pipe



Sludge Conveyor inlet DN100
Pharmaceutical liquid delivery port ¢25
Filtrate outlet DN80
Water supply outlet ¢25
Return flow ¢100
Mixed flocculation tank emptying ¢63
