|Range Of Measurement:||0.9-3.1g/cm3 (7.5-26lb/gal)||Measuring Precision:||0.01g/cm3|
|Cup Volume:||210cm3||External Size:||550×80×150|
mud testing equipment,
drilling fluid equipment

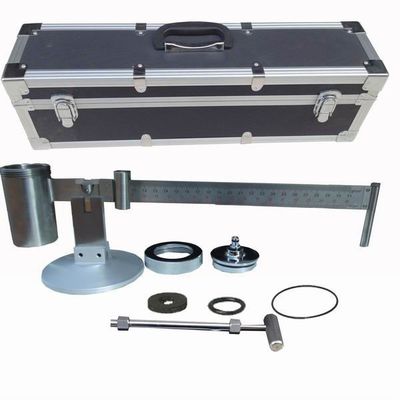

This product is mainly used to measure the density of drilling fluids and other fluids. Compare with the YM model balance, this instrument can make the gas present in fluids released or compressed by virtue of exerting a pressure to the fluids and minimize the influence the natural gas or the air mixed in fluids to the density measurement of drilling fluids, so that the true density of fluids can be measured. The instrument is characterized by the stable measuring data and high precision. It has been widely applied in the oil fields, geological exploration and laboratories for analysis and measurements of fluid density.
2. Model and specification
3. The main technical parameters of instrument
The major technical parameters are listed in the following table.
|Sequence No.||Name||Technical parameter|
|1||Range of measurement||0.9-3.1g/cm3 (7.5-26lb/gal)|
