360m³ / H High Capacity Vacuum Degasser With Api Iso9001 Certification

360m³ / H High Capacity Vacuum Degasser With Api Iso9001 Certification
360m³ / H High Capacity Vacuum Degasser With Api Iso9001 Certification 360m³ / H High Capacity Vacuum Degasser With Api Iso9001 Certification

Large Image :  360m³ / H High Capacity Vacuum Degasser With Api Iso9001 Certification

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRZCQ360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Iron or nude package
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets/Month
Detailed Product Description
Body Diameter: 1000m Vacuum Degree: -0.03~-0.045Mpa
Degassing Efficiency: ≥95% Vacuum Pump Power: 7.5kw
Ex Standard: Exd II Bt 4 / IECEX / A-TEX Dimension: 2400*1500*1850mm
Capacity/Flow Rate: 360m3/h Transmission Ratio: 1.72
Main Power: 37kw Impeller Speed: 880r/min
Weight: 1800kg Key Words: Oilfield Drilling Vacuum Degasser, Professional Degasser Manufacturer
High Light:

vacuum degassing unit


vacuum degassing machine

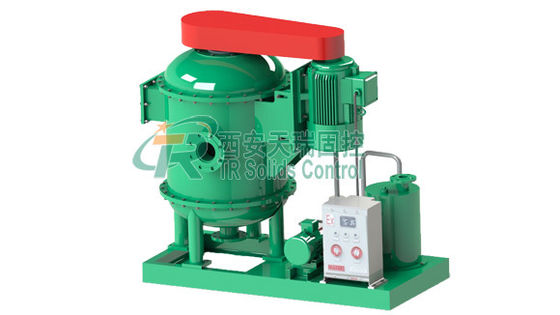

API Drilling Mud Solids Control Vacuum Degasser / High Treating Capacity 360m3/h




Vacuum Degasser is a special-purpose device and a new type one for gas treatment in drilling fluids. It can get rid of various invasive gas in drilling fluids quickly. Degasser is very important for stabilizing mud viscosity, returning mud gravity and reducing drilling cost. It can be used as a heavy-power agitator and supported applicable to all types of mud circulation system.


TRZCQ Vacuum Degassers are able to serve the needs of any application. It's usually installed after shale shakers. Each degasser can efficiently and effectively remove gases from gas-cutmud, thus ensuring the proper mud weight is pumped down hole. By doing so, degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, our degasser is a self-contained unit. It is monitored by level sensor to protect over suction of the fluids.




TR vacuum degasser is widely used in these industries: Oil and Gas Drilling, Coal Bed Gas Solids Control System, Trenchless HDD & Tunnelling, Oil Mud Seperation, Water Drilling, Oil Sludge Dewatering Systems, Drilling Waste Management, Bored Piling etc.


Features of TRZCQ Series Vacuum Degasser

  1. Belt drive guarantees the long time working time without trouble.​
  2. Self-priming device enables it to pump drilling fluids without centrifugal pump.
  3. Scientific and reasonable design for structure achieves effective separation of gas and liquid.
  4. TR vacuum degasser has high degassing efficiency up to 95%.
  5. Water ring type of vacuum pump work is suitable for flammable and explosive gas suction.
  6. Gas-water separator in vacuum degasser saves water and environment-friendly.

Technical Data of TRZCQ Series Vacuum Degasser


Body Diameter 700mm 800mm 900mm 1000mm
Capacity 240 m³/h 270 m³/h 300 m³/h 360 m³/h
Vacuum Degree -0.030-0.045Mpa -0.030-0.050Mpa -0.030-0.045Mpa -0.030-0.045Mpa
Transmission Ratio 1.68 1.68 1.68 1.72
Degassing Efficiency ≥95% ≥95% ≥95% ≥95%
Motor Power 15kW 22kW 30kW 37Kw
Vacuum Pump Power 2.2kW 3kW 4kW 7.5kW
Impeller Speed 860r/min 870r/min 876r/min 880r/min
Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm
Weight 1100kg 1350kg 1650kg 1800kg




















Drilling Mud Solids Control Vacuum Degasifier , 360m3/h Vacuum Tank Degasser


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
