Product Details:
Payment & Shipping Terms:
|
| Drying Shaker: | TRZS585*1pc | Vertical Cutting Dryer: | TRCD930C*1pc |
|---|---|---|---|
| High Speed Centrifuge: | TRLW355N-1*1pc | Sand Pump: | TRSB4*3-11J*2pcs |
| Centrifuge Slurry Pump: | 80YZ50-20B81pc | Screw Conveyor: | TRL350*3000 |
| Shale Shaker Tank: | 3000*2150*1300mm | Decanter Centrifuge Tank: | 9000*2200*1300mm |
| High Light: | mud recycling system,mud treatment system |
||

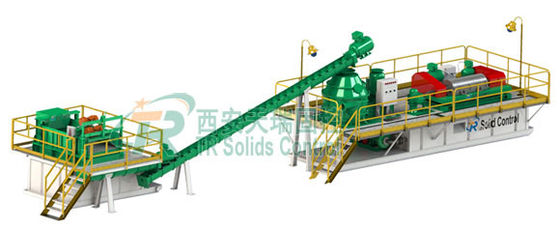

Large Scale OBM Drilling Mud System for Oil Based Drill Cuttings Management
Main Introduction
Drilling waste management system, also called as drill cutting treatment system or drilling cutting management system. According to different applications, it can be classified as water-based drilling waste management system and oil-based drilling waste management system. The main system equipments are drying shaker, vertical cutting dryer, decanter centrifuge, screw conveyor, screw pump and mud tanks. The drilling waste management system can effectively control the moisture content (6%-15%) and oil content (2%-8%) in drilling cuttings and stabilizes the liquid phase performance.
TR drilling waste management is used for taking drilling fluids from the drilling cuttings and clean the fluids for resuse. It is to maximize the recycling of drilling fluids, and minimize the drilling waste in order to save cost for operators.
Characterstics of TR Drilling Waste Management
Technical info. of TR Drilling Waste Management
| S/N | S/N | Description |
| 1 | Vertical Cuttings Dryer | TRCD930 with option for VFD or fixed speed |
| 2 | Decanter Centrifuge | TRGLW355Centrifuge 14inch bowl,Optional model as below: TRGLW355 Centrifuge with VFD drive. TRGLW355 standard with fixed speed |
| 3 | Screw Pump | Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump. One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer. |
| 4 | Skid with catching tank | Fast move skid for mounting all the equipment One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer. |
| 5 | Telescopic Skid | Two telescopic skid with walkways and handrails for safe operation. One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity. The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings |
| 6 | Electric Cradle | 0.5 Tons electric cradle for lifting the components of vertical dryer |
| 7 | Electric Control System | Two lighting system,electrical control boxes and cables and plugs for operation the complete system. |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
