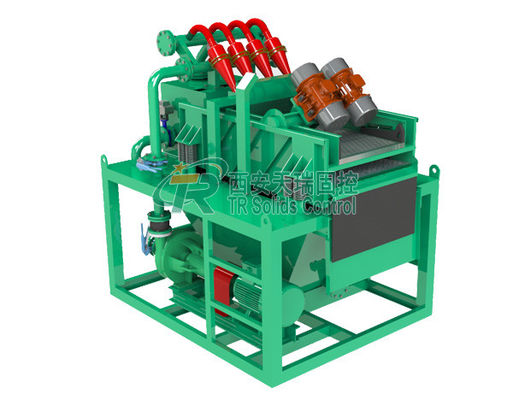

Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System

Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System
Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System
video play

Large Image :  Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRZX-50/25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or by container
Delivery Time: 25 days after receiving 30% deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 150 Set / Month
Detailed Product Description
Fluid Capacity: ≤50m3/h Sludge Capacity: ≤50m3/h
Separation Point: 25μm Shale Shaker: TRZS753
Screen Type: Double Layers Vibration Motor: 1.0kw*2
Matching Pump: TRSB4*3-12J(15kw) Hydrocyclones: DN100*4
Tank Dimension: 2300*1830*1300mm System Dimension: 2300*1830*2400mm
High Light:

mud recycling system

,

mud treatment system

Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System



Brief Introduction



TR bored pile desanding plant is the economic way for the mud recycling. It is popular for HDD (trenchless) industry, bored piling slurry treatment, TBM slurry treatment as well as water well drilling etc.



The whole equipment where mud may splash did seal or block processing, such as plasma around the pool and storage rack connection part completely sealed, which is located around the pool of slurry storage in shale shaker to increase the protective plate and prevent the machine in operation. Mud splash effectively protects the three-phase asynchronous motor unaffected by flying pulp covered its heat dissipation function, which protects the tidy of the machine.



Characterstics of TR Bored Pile Desanding Plant

  1. The equipment for modular design and compact structure, making it easy to put in the construction and convenient to move.
  2. Effective separation of soil crusts, pore-forming efficiency is enhanced.
  3. Mud reuse saves mud making materials and reduces construction cost.
  4. Mud closed-circuit circulation mode and low ballast material moisture content are helpful to reduce environment pollution.
  5. High mud handling capacity, sand can be removed efficiently.
  6. It can improve the quality and working efficiency of pore making in the pile foundation.

Parameters of TR Bored Pile Desanding Plant



Model TRZX-50/25 TRZX-100/50 TRZX-200/50
Fluid Capacity ≤50m³/h ≤100m³/h ≤200m³/h

Sludge Treatment Capacity

≤26T/h ≤50m³/h ≤50m³/h
Separation Point 25μm 50μm 50μm
Shale Shaker TRZS753 TRZS753 TRZS705

Screen Area

Upper:700×1250

Bottom:750×900×2

Upper:700×1250

Bottom:750×900×2

Upper:750×900×2

Bottom:700×1250×3

Vibration Motor

1.0kw×2 1.0kw×2 1.5KW×2
Matching Pump TRSB4×3-12(15KW) TRSB5×4-13(30KW) TRSB6×5-13J(45KW)
Matching Hydrocyclone DN100×4 DN250×1 DN250×2
Tank Dimension 2.1x1.5x2.6m 3.05x2.0x1.2m 3.6x2.1x1.2m
Dimension   3.12x2.2x2.38m 3.7x2.2x2.54m

Double Layers Bored Pile Drilling Mud System , 15KW HDD Mud Circulation System 0

Our mdu systems have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
