Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60m3/h | Hydrocyclone Specs: | 8" |
|---|---|---|---|
| Hydrocyclone Qty: | 1pcs | Working Pressure: | 0.25-0.4Mpa |
| Inlet Diameter: | DN125mm | Outlet Diameter: | DN150mm |
| Separation Point: | 45um-75um | Bottom Shaker: | TRTS60 |
| Weight: | 570kg | Dimension: | 1510*1160*2000mm |
| High Light: | desanding machine,desanding equipment |
||
API Standard Hydrocyclone Desanding System for Oil and Gas Drilling Interchangeable
Introduction
TRCS series Desander cyclone uses high chromium cast iron or pure polyurethane material. Customers can choose independently. We can exchange it with international brand. Our cyclone has long lifetime and light weight, and easy to maintain. It has high separation ability and wide separation range. It can remove solid particles from 45 um to 1mm.
Design Principles
TR desander is produced by an high level design, elaborately engineering, superb materials and finest workmanship which comprising 8, 10, and 12 inches cone diameter. As desanders have various capacity based on its diameter.
Operation Mechanism

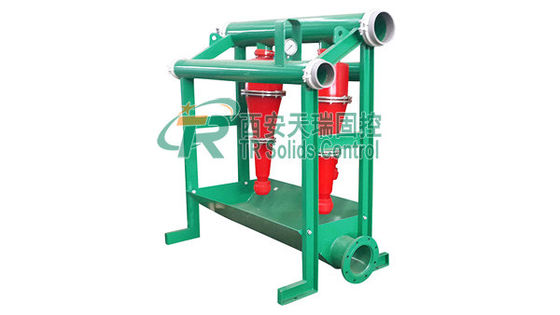

Desander includes two 12 inch(305mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8inch(203mm) diameter feed manifold and a 10inch (254mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydrocyclone underflow evenly onto the screening surface.
Technical data of TRCS series desander
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desander could be customized without bottom shaker. | |||
Application
TRCS Series Mud Desander is widely used in oil & gas drilling, tunneling construction, Drilling Waste Management, city bored piling, trenchless HDD, environment protection, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
