300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point

300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point
300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point
video play

Large Image :  300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRCS250-3S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Pcs / Month
Detailed Product Description
Capacity: 300m3/h Hydrocyclone Specs: 10"
Hydrocyclone Qty: 3pcs Working Pressure: 0.25-0.4Mpa
Inlet Diameter: DN150mm Outlet Diameter: DN200mm
Separation Point: 45um-75um Bottom Shaker: TRZS752
Weight: 1300kg Dimension: 1835*1230*1810mm
High Light:

desanding machine

,

desanding equipment

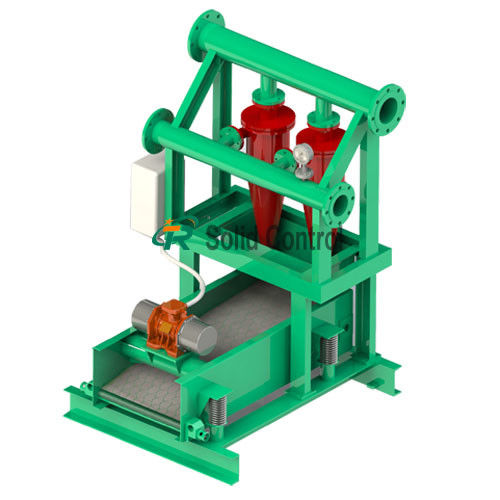

300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point



Main Introduction



TRCS series drilling fluid desander is a kind of hydrocyclone desander composed of hydrocyclone and shale shaker. It is the second class solid control equipment to treat drilling fluids, mainly used for separating solid particles with size 47 ~ 76μm.



Desander cyclone uses high chromium cast iron or pure polyurethane material. Customers can choose independently. We can exchange it with international brand. TRCS series mud desander has high separation ability and wide separation range. It can remove solid particles from 45 um to 1mm. Cyclone underflow is pressurized umbrella “wet bottom” to quickly discharge the particles in the separation zone, reducing the blocking probability.



Main Features of TRCS Series Drilling Desander

  1. Pure polyurethane or high-chromium for hydrocyclones.
  2. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
  3. Replaceable hydrocyclones.
  4. Internation brand vibrating motor, Martin or Oli Motor.
  5. Compact design with small footprint.
  6. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.
  7. Flexible fast connection are available for user assembly.

Technical data of TRCS series desander



Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.



300m3/h Oilfield Drilling Mud Desander with 45um - 75um Separation Point 0



Application



TRCS Series Mud Desander is currently used in Drilling Waste Management, city bored piling, trenchless HDD, oil & gas drilling, tunneling construction, mining, Oil Mud Seperation, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System,  environment protection, Water Drilling etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
