Product Details:
Payment & Shipping Terms:
|
| Model: | 100YZ160-38B | Flow: | 82m3/h |
|---|---|---|---|
| Lift: | 33m | Speed: | 1480r/min |
| Motor: | 30kw | Appllication: | Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management |
| High Light: | submersible sewage pump,submersible mud pump |
||

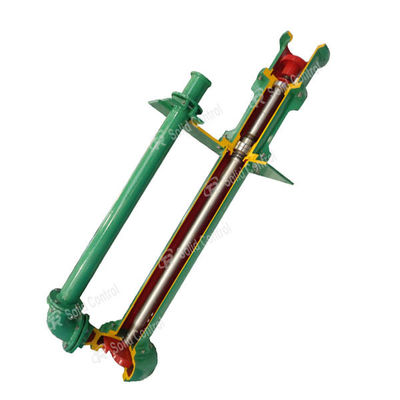

YZ Series Oilfield Drilling Fluids Submersible Slurry Pump / Motor Power 30KW
Introduction
Submersible slurry pump is one kind of Vertical Centrifugal Pump. It mainly supplies slurry for shale shaker and decanter centrifuge from drilling mud pit. It transfers liquid and solid mixture. Raw material of our submersible slurry pump is rather anti-abrasive. It can transfer different hard materials. Including sand, cement, particles, shale, and so on.
The main features of our YZ submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.
Application
YZ series submersible slurry pump is widely used in Drilling Waste Management, tunnelling construction, oil & gas drilling, city bored piling, trenchless HDD, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling, coal washing, municipal projects, thermal power generation, mining, paper making, cement plant etc.
Features of TR Submersible Slurry Pump
Technical Data of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
