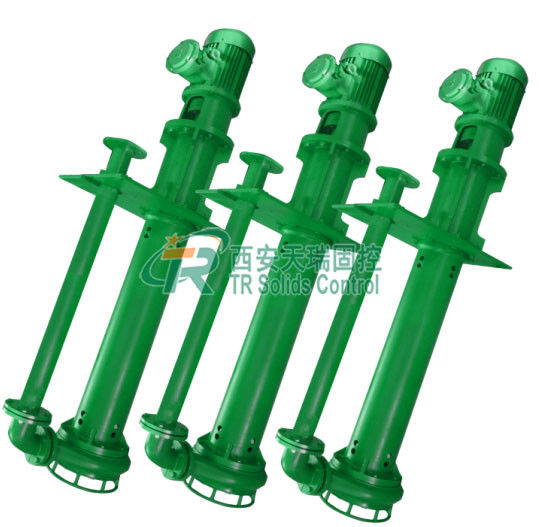

API Standard Supply Pump Mud Submersible Slurry Pump / Vertical Slurry Pump
Introduction
YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. It can transport large particles of solid particles. Pump inserted in the liquid length usually is between 800mm to 1900mm, and it can be equipped with suction pipe if necessary. The drive is mounted on the motor base by a vertical motor and connected to the pump with a coupling.
Our submersible slurry pump consists of impeller, pump case, pump shaft, bearing, driven power, supporting frame, coupler, shaft sleeve, shaft seal, and so on. Usually, we use the electrical motor to drive the pump. Popular flow rate of the pump is from 25m³/h to 200m³/h.
Application
Currently submersible slurry pump is widely used in oil & gas drilling, city bored piling, tunnelling construction, Drilling Waste Management, trenchless HDD, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Water Drilling, environment protection, coal washing, municipal projects, thermal power generation, mining, paper making, cement plant etc.
Features of TR Submersible Slurry Pump
Technical Data of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
