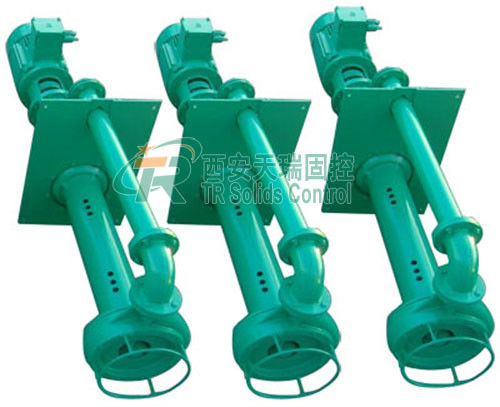

Drilling Fluids Vertical Submersible Slurry Pump 20 Cubic Meter Per Hour Capacity

Drilling Fluids Vertical Submersible Slurry Pump 20 Cubic Meter Per Hour Capacity
Drilling Fluids Vertical Submersible Slurry Pump 20 Cubic Meter Per Hour Capacity
video play

Large Image :  Drilling Fluids Vertical Submersible Slurry Pump 20 Cubic Meter Per Hour Capacity

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 50YZ20-18
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Sets Per Month
Detailed Product Description
Model: 50YZ20-18 Flow: 20m3/h
Lift: 18m Speed: 1430r/min
Motor: 4kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Drilling Fluids Vertical Submersible Slurry Pump For Sale with Capacity 20m3/h



Introduction



Our YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type, and uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump’s impeller is semi-open type, and it’s equipped with mixing blade in the stretch part of impeller inlet.



TR Solids Control has many years experience in manufacturing high quality submersible slurry pump. Our pump may penetrate the liquid between 800m-2500mm under it, and may be equipped with suction pipes if necessary. Shaft seal is not adapted, the medium with dense solids can also be transported.



Application



YZ series submersible slurry pump is currently used in city bored piling, tunnelling construction, trenchless HDDoil & gas drillingDrilling Waste Management, environment protection, Coal Bed Gas Solids Control System, Water Drilling, Oil Sludge Dewatering Systems, Oil Mud Seperation, coal washing, municipal projects, thermal power generation, mining, paper making, cement plant etc.



Features of TR Submersible Slurry Pump

  1. Compact design covers small space.
  2. Enough rigidity in submerged parts of the shaft.
  3. Submerge length can be customizable.
  4. Impeller is semi-open type.
  5. No bearing between impeller and pump for less repair cost.
  6. Could convey the medium containing solid particles with larger density.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.

Technical Data of YZ Series Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



Drilling Fluids Vertical Submersible Slurry Pump 20 Cubic Meter Per Hour Capacity 0



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
