|Body Diameter:||1000m||Capacity/Flow Rate:||360m3/h|
|Vacuum Degree:||-0.03~-0.045Mpa||Transmission Ratio:||1.72|
|Main Power:||37kw||Vacuum Pump Power:||7.5kw|
|Impeller Speed:||880r/min||Ex Standard:||Exd II Bt 4 / IECEX / A-TEX|
vacuum degassing unit,
vacuum degassing machine

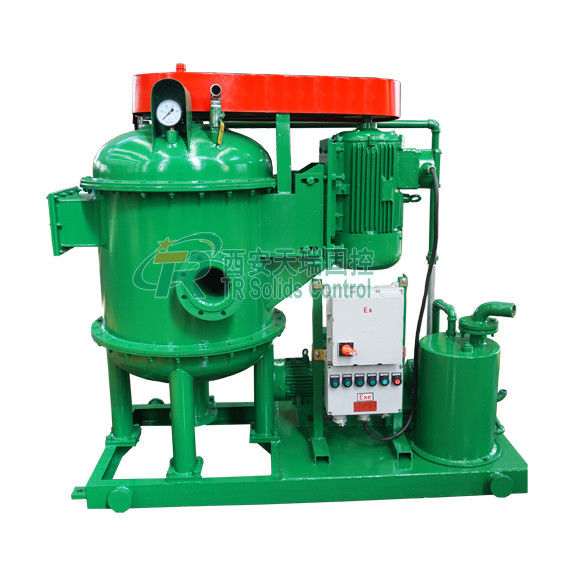

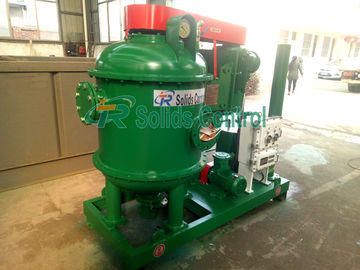

API Drilling Mud Solids Control Vacuum Degasser / High Treating Capacity 360m3/h
Vacuum Degasser is a special-purpose device and a new type one for gas treatment in drilling fluids. It can get rid of various invasive gas in drilling fluids quickly. Degasser is very important for stabilizing mud viscosity, returning mud gravity and reducing drilling cost. It can be used as a heavy-power agitator and supported applicable to all types of mud circulation system.
TRZCQ Vacuum Degassers are able to serve the needs of any application. It's usually installed after shale shakers. Each degasser can efficiently and effectively remove gases from gas-cutmud, thus ensuring the proper mud weight is pumped down hole. By doing so, degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, our degasser is a self-contained unit. It is monitored by level sensor to protect over suction of the fluids.
TR vacuum degasser is widely used in these industries: Oil and Gas Drilling, Coal Bed Gas Solids Control System, Trenchless HDD & Tunnelling, Oil Mud Seperation, Water Drilling, Oil Sludge Dewatering Systems, Drilling Waste Management, Bored Piling etc.
Features of TRZCQ Series Vacuum Degasser
Technical Data of TRZCQ Series Vacuum Degasser
|Capacity||240 m³/h||270 m³/h||300 m³/h||360 m³/h|
|Vacuum Pump Power||2.2kW||3kW||4kW||7.5kW|
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
