Product Details:
Payment & Shipping Terms:
|
| Body Diameter: | 800m | Capacity/Flow Rate: | 270m3/h |
|---|---|---|---|
| Vacuum Degree: | -0.03~-0.045Mpa | Transmission Ratio: | 1.68 |
| Degassing Efficiency: | ≥95% | Main Power: | 22kw |
| Vacuum Pump Power: | 3kw | Impeller Speed: | 870r/min |
| Ex Standard: | Exd II Bt 4 / IECEX / A-TEX | Dimension: | 2000*1000*1670mm |
| High Light: | vacuum degassing system,vacuum degassing unit |
||

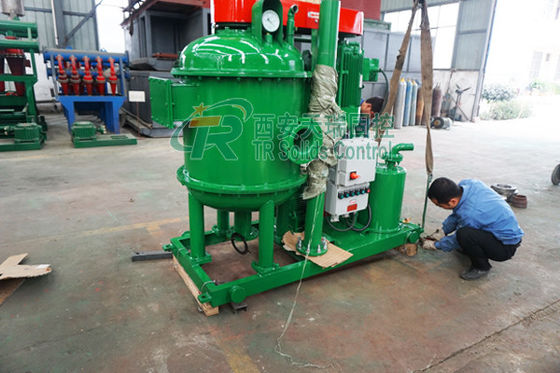

High Efficiency Drilling Vacuum Degasser For Hot Sale , With High Capacity 270m3/h
Introduction
Vacuum Degasser is a special purpose device for gas extraction in drilling fluids. This unit is positioned downstream from mud cleaner, shale shaker and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement. It is used to remove small entrained gas bubbles left in the mud by mud gas separator.
The function of vacuum degasser is breaking the air and gas out, such as methane, CO and H2S from the mud to the surface. Drilling fluid is usually sucked from shale shaker tank under vacuum force. In addition, vacuum degasser plays the role of agitation on drilling fluid. Based on common design, our degasser can be customized according to client's practical demand.
Features of TRZCQ Series Vacuum Degasser
Technical Data of TRZCQ Series Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg |
1800kg |
Product Application
TR Solids Control is a main manufacturer of vacuum degasser in China. Our vacuum degassers are widely used in these industries: Oil Sludge Dewatering Systems, Drilling Waste Management, Oil and Gas Drilling, Trenchless HDD & Tunnelling, Water Drilling, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
