|Body Diameter:||700m||Capacity/Flow Rate:||240m3/h|
|Vacuum Degree:||-0.03~-0.045Mpa||Transmission Ratio:||1.68|
|Degassing Efficiency:||≥95%||Main Power:||15kw|
|Vacuum Pump Power:||2.2kw||Impeller Speed:||860r/min|
|Ex Standard:||Exd II Bt 4 / IECEX / A-TEX||Dimension:||1750*860*1500mm|
vacuum degassing unit,
vacuum degassing machine

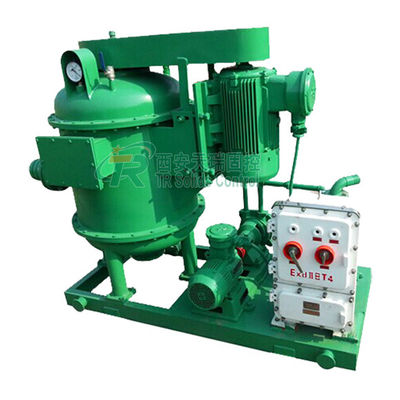

Top Quality 860r/min Vacuum Degasser For Horizontal Directional Drilling , With Explosion Proof
TRZCQ series vacuum degasser is a special equipment and a new type for gas treatment in the drilling fluids. It can get rid of various invasive gas from drilling fluids quickly. Our vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Besides, it can be used as a heavy power agitator and supported applicable to all types of mud recycling system.
The function of vacuum degasser is breaking the air and gas out, such as methane, H2S, and CO from the mud to the surface. Usually drilling fluid is sucked from shaker tank under vacuum force. Vacuum degasser plays the role of agitation in drilling fluids. Based on universal design, TR vacuum degasser can be customized according to your actual demand.
Our TRZCQ series vacuum degasser can be used in these industries: Oil and Gas Drilling, Oil Mud Seperation, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Drilling Waste Management, Water Drilling, Trenchless HDD & Tunnelling, Bored Piling etc.
Features of TRZCQ Series Vacuum Degasser
Technical Data of TRZCQ Series Vacuum Degasser
|Capacity||240 m³/h||270 m³/h||300 m³/h||360 m³/h|
|Vacuum Pump Power||2.2kW||3kW||4kW||7.5kW|
