High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit

High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit
High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit

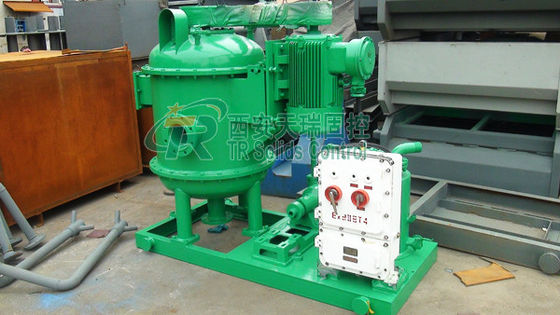

Large Image :  High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRZCQ240
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron or nude package
Delivery Time: Within 25 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Body Diameter: 700m Capacity/Flow Rate: 240m3/h
Vacuum Degree: -0.03~-0.045Mpa Transmission Ratio: 1.68
Degassing Efficiency: ≥95% Main Power: 15kw
Vacuum Pump Power: 2.2kw Impeller Speed: 860r/min
Ex Standard: Exd II Bt 4 / IECEX / A-TEX Dimension: 1750*860*1500mm
High Light:

vacuum degassing unit

,

vacuum degassing machine

High Capacity 240m3/h 15KW Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degasser



Brief Introduction



TRZCQ series vacuum degasser is a special purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various invasive gas in drilling fluids quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, it can be used as a heavy power agitator and supported applicable to all types of mud purification system.



Vacuum degasser is simple in design and operation. This unit can remove gas mechanically, instead of solely depend on density differences between the gas and the mud, whereby the gas liberates itself automatically. Our TRZCQ series vacuum degasser is one of solids control and waste management offerings that TR supplies to oil and gas drilling industry.



Features of TRZCQ Series Vacuum Degasser

  1. Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making the vacuum degasser have high degassing efficiency up to 95%.
  2. Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe is always clear;
  3. Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
  4. There is a gas-water separator in vacuum degasser, which can avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
  5. Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.

Technical Data of TRZCQ Series Vacuum Degasser



Model TRZCQ240 TRZCQ270 TRZCQ300 TRZCQ360
Body Diameter 700mm 800mm 900mm 1000mm
Capacity 240 m³/h 270 m³/h 300 m³/h 360 m³/h
Vacuum Degree -0.030-0.045Mpa -0.030-0.050Mpa -0.030-0.045Mpa -0.030-0.045Mpa
Transmission Ratio 1.68 1.68 1.68 1.72
Degassing Efficiency ≥95% ≥95% ≥95% ≥95%
Motor Power 15kW 22kW 30kW 37Kw
Vacuum Pump Power 2.2kW 3kW 4kW 7.5kW
Impeller Speed 860r/min 870r/min 876r/min 880r/min
Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm
Weight 1100kg 1350kg 1650kg

1800kg







































High Capacity Vacuum Degasser , Coal Bed Methane Drilling Vacuum Degassing Unit 0



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
