1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated

1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated
1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated

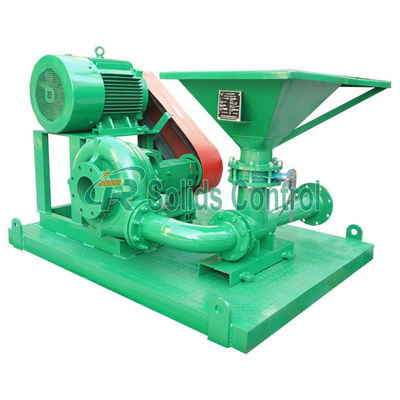

Large Image :  1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSLH150-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets Per Month
Detailed Product Description
Capacity: 180m3/h Matching Pump: TRSB6*5-13J
Motor Power: 45kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 150mm Nozzle Diameter: 40mm
Hopper Dimension: 750*750mm Burden Speed: <80kg/min
Weight: 1450kg Dimension: 2200*1700*1200mm
High Light:

mud hopper

,

mud mixing hopper

1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated



Product Introduction



Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.



Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.



Features of TRSLH Series Jet Mud Mixer


1. Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head, so that the material in the tank fully mixed.

2. Single jet mud mixer is composed of one sand pump, one jet mixing hopper that are installed in a base with pipe valves. Duplex jet mud mixer is composed of two sand pumps and two jet mixing hoppers.

3. The jet mixing hopper and sand pump can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, which have good sealing performance.



Technical Data of TRSLH Series Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Work Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



1450KG 150mm Inlet Diameter Jet Mud Mixer API / ISO Certificated 0



Delivery time:
1. Warehouse machine: 1 days after 100% payment.
2. Booked machine: 30-45 days after 30% payment.
Welcome oversea rig manufacturer to cooperate with us.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
