Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| High Light: | mud mixing hopper,mud mixer machine |
||

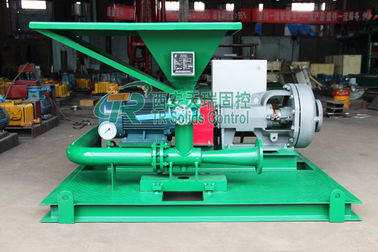

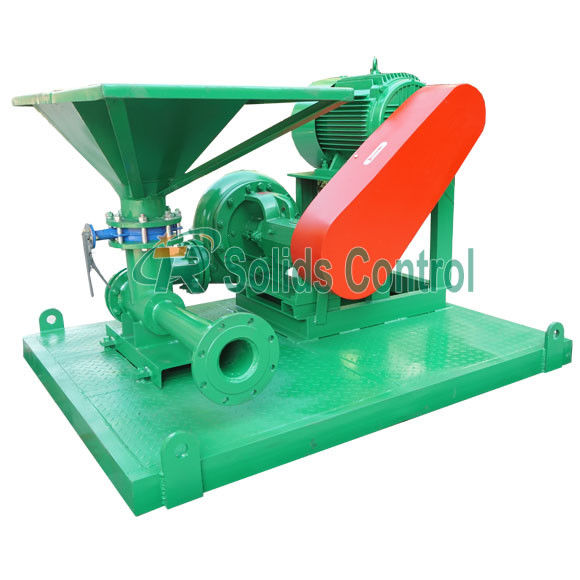

Large Capacity Jet Mud mixer For Petroleum Drilling And Horizontal Directional Drilling
Main Introduction
Jet Mud mixeris is a special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH series jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one jet mixing hopper and one jet mixer that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time, we can make Twin-Jet Mud Mixer according to the user requirements. It is designed by TR solids control bentonite mud mixer, drilling mud tank jet mixer.
TRSLH series jet mud mixer can be matched with other drilling solids control system. It’s reliable and safe, and easy to move, and can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.
Benefits of TRSLH Series Jet Mud Mixer
1. It is safe and stable and can be moved conveniently.
2. The unit includes one sand pump, one jet mixing hopper
3. The effect is more prominent matching with Shear Pump.
4. It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
5. It can be made Twin Jet Mud Mixers according to the user requirements.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our Service
1. Material: Iron Q235B from BAOSTEEL with quality certificate.
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt Nanyang or other national famous brand explosion-proof motor.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
