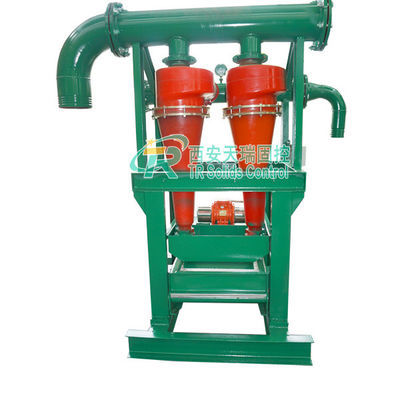

200m3/h 10" Cyclone Drilling Mud Desander for Mud Circulating System

200m3/h 10" Cyclone Drilling Mud Desander for Mud Circulating System
200m3/h 10" Cyclone Drilling Mud Desander for Mud Circulating System
video play

Large Image :  200m3/h 10" Cyclone Drilling Mud Desander for Mud Circulating System

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRCS250*2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Pcs / Month
Detailed Product Description
Capacity: 240m3/h Hydrocyclone Specs: 10"
Hydrocyclone Qty: 2pcs Working Pressure: 0.25-0.4Mpa
Inlet Diameter: DN150mm Outlet Diameter: DN200mm
Separation Point: 45um-75um Bottom Shaker: TRTS60
Weight: 760kg Dimension: 1510*1360*2250mm
High Light:

desanding machine

,

sand removal system

High Capacity 200m3/h 10" Cyclone Drilling Fluid Desander for Mud Circulating System



Main Introduction



Mud Desander is the second class solids control equipment in drilling operation. Generally, there are a set of hydrocyclones in 8”, 10” or 12” in the desander, which mainly used for separating solid particles sized in 47~76μm from the drilling fluids. TRCS series desander mainly consists of shale shaker, hydrocyclones, distribution manifold, and electric control cabinet. Our desander removes the abrasive solids from the drilling fluids which cannot be removed by shale shaker.


Desander has already been one of TR’s main products that ever requested very often from clients. TRCS series desander overcomes the shortcomings of the original desanding process. Our desander is with advantages of strong separation ability, high quality hydrocyclones, large capacity, small noise, long service time and easy maintenance. They are getting more and more attention from clients.



Design Principle



TR desander is produced by an advanced design, quality materials, careful engineering and finest workmanship which comprising 8, 10, and 12 inches cone diameter. Our desanders have various capacity based on its diameter.


Operation Mechanism



Desander includes two 12-inch(305-mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8-inch(203-mm) diameter feed manifold and a 10-inch (254-mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydroclone underflow evenly onto the screening surface.



Technical data of TRCS series desander



Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.



200m3/h 10" Cyclone Drilling Mud Desander for Mud Circulating System 0



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
