Payment & Shipping Terms:
|Body Diameter:||1000m||Capacity/Flow Rate:||360m3/h|
|Vacuum Degree:||-0.03~-0.045Mpa||Transmission Ratio:||1.72|
|Degassing Efficiency:||≥95%||Main Power:||37kw|
|Vacuum Pump Power:||7.5kw||Impeller Speed:||880r/min|
vacuum degassing system,
vacuum degassing unit

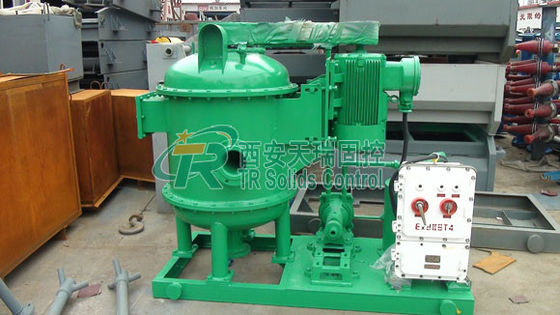

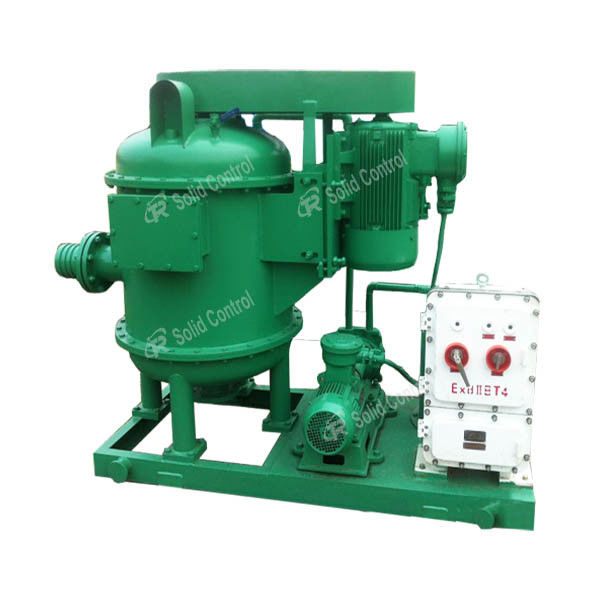

Capacity 360m3/h Oilfield Drilling Vacuum Degasser , API Certified Vacuum Degasser
Vacuum Degasser is used to remove the small entrained gas bubbles left in the mud by mud gas separator. This unit is positioned downstream from shale shaker, mud cleaner and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement.
Vacuum degasser, on the other hand, is simple in design and operation. This unit mechanically removes gas, instead of solely relying on density differences between the gas and the mud, whereby the gas liberates itself automatically. TRZCQ series vacuum degasser is one of solids control and waste management offerings that we supply to oil and gas drilling industry.
Our TRZCQ series vacuum degasser is widely used in these industries: Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Drilling Waste Management, Trenchless HDD & Tunnelling, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling etc.
Features of TRZCQ Series Vacuum Degasser
Technical Data of TRZCQ Series Vacuum Degasser
|Capacity||240 m³/h||270 m³/h||300 m³/h||360 m³/h|
|Vacuum Pump Power||2.2kW||3kW||4kW||7.5kW|
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
