Drilling Mud Treatment Shear Pump , Alloy Cast Iron Made Drill Shear Pump

Drilling Mud Treatment Shear Pump , Alloy Cast Iron Made Drill Shear Pump
Drilling Mud Treatment Shear Pump , Alloy Cast Iron Made Drill Shear Pump
video play

Large Image :  Drilling Mud Treatment Shear Pump , Alloy Cast Iron Made Drill Shear Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB6535
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 100m3/h Lift: 35m
Motor: 37kw Weight: 800kg
Dimension: 1050*1000*1230mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

drill fluid pump


high shear pump

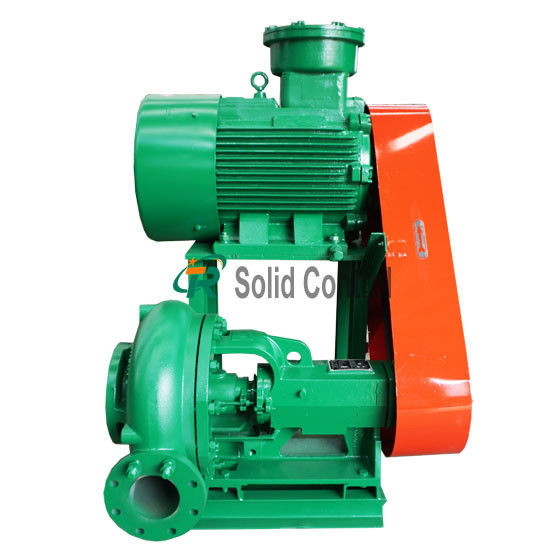

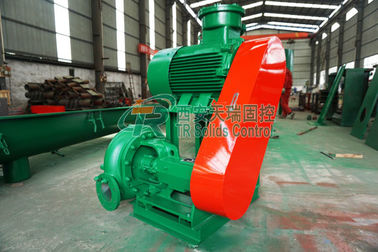

JQB6535 Shear Pump For Oil and Gas Drilling Mud Treatment , Solids Control Shear Pump
Shear pump is one of the important equipment in the drilling fluid circulation system, mainly used to deal with chemicals and soil, and quickly attain the purpose of configuring drilling fluid. Shear pump design has a special impeller structure, which can produce a strong shear force when the liquid flows. By smashing and dispersing chemical particles, soil and other solid phase in liquid flow, so that the liquid in the solid phase broken and evenly distributed. Field treatment analysis shows that by shear pump treating drilling fluid, we can save more than 20% of the amount of soil, and can significantly improve the drilling fluid filtration performance and quality of mud cake.
TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. TRJQB series Shear Pump is new types equipment which provides the fast configuration and mud treatment for the user. This series shear pump can mix effectively and hydrate the material added in the drilling fluid completely. It saves the mud material, reduces the time of configuration, and provides the high performance mud for the well drilling.
Features of TRJBQ Series Shear Pump

  1. Pump body adopts wear-resistant alloy cast iron, longer service life;
  2. Bearings use internationally renowned brands SKF, quality assured;
  3. Mechanical seal-based, packing seal supplemented as seals combination. Material of mechanical seal is carbide alloy, its life is 5 times than normal;
  4. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance;
  5. Oil seal adopts imported fluorine plastic seal, with good cooling capacity;
  6. Using special impeller and shear board, shear efficiency> 95%. Impeller material selects high chromium alloy, shear plate is made of stainless steel, with wear resistance and good corrosion resistance.

Technical Data of TRJQB Series Shear Pump

Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm

Drilling Mud Treatment Shear Pump , Alloy Cast Iron Made Drill Shear Pump 0
TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our shear pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
