Oil Gas Drilling 22m Lift Submersible Slurry Pump

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. The Derrick replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

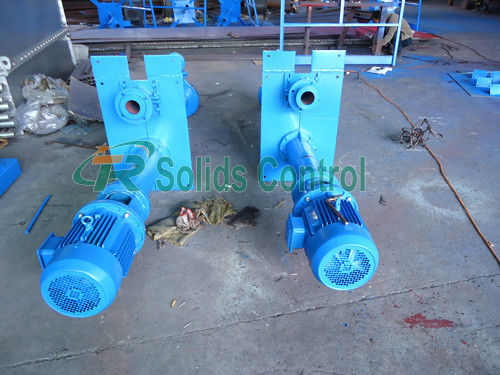

Oil Gas Drilling 22m Lift Submersible Slurry Pump

Oil Gas Drilling 22m Lift Submersible Slurry Pump
Oil Gas Drilling 22m Lift Submersible Slurry Pump
video play

Large Image :  Oil Gas Drilling 22m Lift Submersible Slurry Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 80YZ80-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Model: 80YZ80-20 Flow: 90m3/h
Lift: 22m Speed: 1460r/min
Motor: 11kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Oilfield Equipment Factory Direct Submersible Slurry Pump In Oilfield



Product Introduction



Submersible slurry pump is one kind of Vertical Centrifugal Pump. It mainly supplies slurry for shale shaker and decanter centrifuge from drilling mud pit. It transfers liquid and solid mixture. Raw material of our submersible slurry pump is rather anti-abrasive. It can transfer different hard materials. Including sand, cement, particles, shale, and so on.



The main features of our YZ submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.



Our submersible slurry pump consists of impeller, pump case, pump shaft, bearing, driven power, supporting frame, coupler, shaft sleeve, shaft seal, and so on. Usually, we use the electrical motor to drive the pump. Popular flow rate of the pump is from 25m³/h to 200m³/h.



Key Benefits of TR Submersible Slurry Pump

  1. Enough rigidity in submerged parts of the shaft.
  2. Submerge length can be customizable.
  3. Impeller is semi-open type.
  4. Could convey the medium containing solid particles with larger density.
  5. Compact design covers small space.
  6. Vertical motor is installed on motor base, connecting the pump by coupling.
  7. No bearing between impeller and pump for less repair cost.

Technical Info. of YZ Series Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



Oil Gas Drilling 22m Lift Submersible Slurry Pump 0



TR 100YZ100 Series Products adopt Nanyang or other national famous brand explosion-proof motor and Anti-corrosion painting in the national famous brand Dewei.



The submersible slurry pump may penetrate the liquid between 800m-2500mm under it, and may be equipped with suction pipes if necessary. Vertical motor is installed on the motor base, connected to the pump by coupling.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
