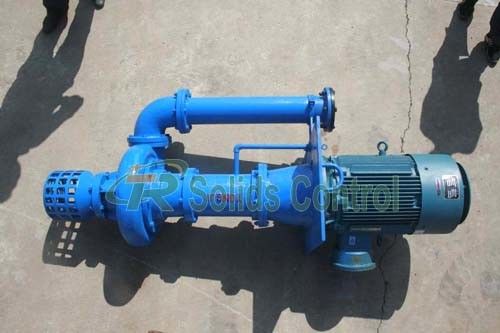

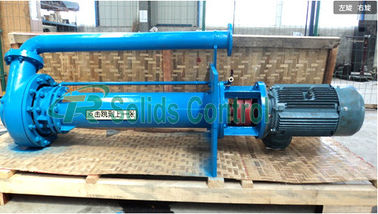

Oil Drilling​ 82m3/H Flow API Submersible Slurry Pump

Oil Drilling​ 82m3/H Flow API Submersible Slurry Pump
Oil Drilling​ 82m3/H Flow API Submersible Slurry Pump
video play

Large Image :  Oil Drilling​ 82m3/H Flow API Submersible Slurry Pump

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: 100YZ160-38B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Model: 100YZ160-38B Flow: 82m3/h
Lift: 33m Speed: 1480r/min
Motor: 30kw Appllication: Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management
High Light:

submersible sludge pump

,

submersible sewage pump

Stable Performance API Submersible Slurry Pump for Oil Drilling​



Product Introduction



TR submersible slurry pump is a feeding pump designed and manufactured according to special requirements of installation.It is applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition. It is mainly used in limited area and as feed pump of centrifuge. We have 11 models of 50YZ25-12 and 150YZ250-40B which are suitable for power grids of 50Hz and 60Hz.



The main features of our YZ submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.



Key Characterstics of TR Submersible Slurry Pump

  1. No bearing between impeller and pump for less repair cost.
  2. Compact design covers small space.
  3. Impeller is semi-open type.
  4. Enough rigidity in submerged parts of the shaft.
  5. Could convey the medium containing solid particles with larger density.
  6. Submerge length can be customizable.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.

Technical Parameters of YZ Series Submersible Slurry Pump



Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw



Oil Drilling​ 82m3/H Flow API Submersible Slurry Pump 0



Pump Features


No leakage: Used combined seal relying mainly on mechanical seal and packing subsidiary. The service life is 6 times as normal mechanical seal.
High efficiency: Impller and case have a streamlined design.
Long serivce life: The flow parts are made of high wearable cast iron.
No jam: The impeller has wide flow pass.
Small area: Vertical structure.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
