84.6×69.7cm FLC313M PWP Shale Shaker Screen Green and Black Color

84.6×69.7cm  FLC313M PWP Shale Shaker Screen Green and Black Color
84.6×69.7cm  FLC313M PWP Shale Shaker Screen Green and Black Color 84.6×69.7cm  FLC313M PWP Shale Shaker Screen Green and Black Color

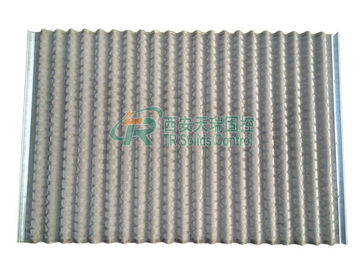

Large Image :  84.6×69.7cm FLC313M PWP Shale Shaker Screen Green and Black Color

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRH-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton box and wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Dimension: 846X697mm Screen Material: S.S.316
Frame Material: Steel Frame Mesh: API40-API325
Layers: 2-3 Layers Package: Inside With Carton Box And Outside With Wooden Case
Weight: 4kg Suitable Shale Shaker: FLC313M PWP
High Light:

rock shaker screen

,

mud screen

846×697mm FLC313M PWP Hook Strip Flat Screens Use of SS316 Stainless Steel



Introduction



Specialties of hook strip flat frame screens as follows:



  1. These products screen panel are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together. Because of different mesh size, and steel backing plate, on the condition of using intensity, to get the best and most effective filtering area.
  2. The above of thin wire cloth with middle and the bottom of the thick wire cloth, combined with different thickness steel backing plate together, infinitely enhance the whole screen use intensity. Because of different model and clients requirement, can choose different steel backing plate form, for example hexagonal, rectangular, square and so on, supporting the above different screen cloth, the whole cloth is divided into independent small surfaces, prevent the part excessive expansion damaged, better extend the use lifetime.


Composite frame screen have main parameters as below:



Products Name TRH-3 Screen for FLC313M PWP shaker
Mesh Range 40-325 Mesh
Dimension Green & Black
Color 846*697mm
Weight 4kgs
Feature Effective Filtering Area & Long Working Life ,Shale Shaker Screen
Application Drilling, Oil&Gas Filtration, Mud Filtration



84.6×69.7cm  FLC313M PWP Shale Shaker Screen Green and Black Color 0



Remarks
Size:846X697mm
Package Details:1 pieces in one carton, 20 pcs in one wooden case.


Features of TR Shaker Screens:



  • Different layers with different density: To arrange these Steel Frame Shaker Screen layers reasonably and exactly, the screening effect will become better.
  • High strength frame, multi-ribs and the mesh cloth with moderate tension, from one reliable combination: which can increase screen’s acceptabl flow, the intensity and the lifetime.
  • The wedge-shaped fastening device: it can make the erection of Steel Frame Shaker Screens more handily and quickly.
  • The mesh: divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch.
  • Accessary prepared rubber stoppers can be used repair damages. By doing so,the operator can cut down the stop-time and reduce the cost.

Application



TR shaker screens are widely used in oil & gas drilling, trenchless HDD, Drilling Waste Management, city bored piling, tunneling construction, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, micro-tunneling, environment protection, mining, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
