11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate

11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate
11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate
video play

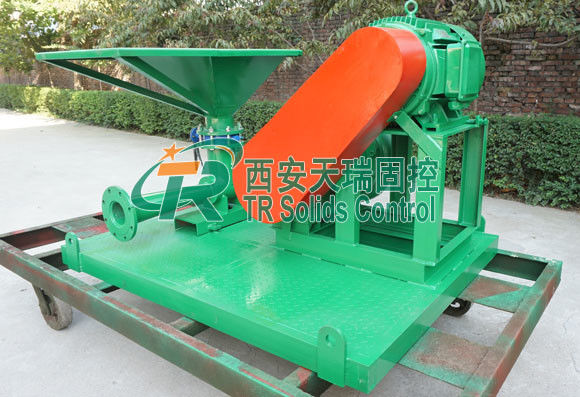

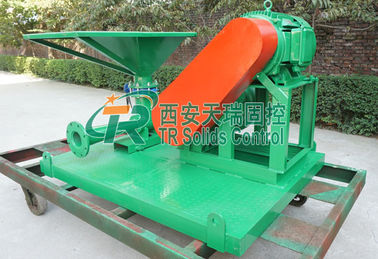

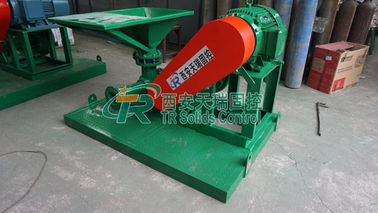

Large Image :  11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate
Model Number: TRSLH100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron or wooden case
Delivery Time: 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 6000 Sets Per Month
Detailed Product Description
Capacity: 60m3/h Matching Pump: TRSB4*3-11J
Motor Power: 11kw Work Pressure: 0.25 To 0.4Mpa
Inlet Diameter: 100mm Nozzle Diameter: 25mm
Hopper Dimension: 500*500mm Burden Speed: <40kg/min
Weight: 1100kg Dimension: 2000*1650*1100mm
High Light:

mud hopper

,

mud mixing hopper

11KW API Certified Oilfield Drilling Jet Mud Mixer with High Qaulity



Introduction



Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.



TRSLH series jet mud mixer is matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can enhance dispersion effect of material, improve pressure head of mixed liquid, make the material recycle and mix enough in the mud tank.



Our jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.



Key Benefits of Our Drilling Jet Mud Mixer

  1. The effect is more prominent matching with Shear Pump.
  2.  It is safe and stable and can be moved conveniently.
  3.  It is designed for solids control bentonite mud mixer,drilling mud tank jet mixer.
  4.  It can be made Twin Jet Mud Mixers according to the user requirements.​
  5. The unit includes one sand pump, one jet mixing hopper



Technical Specifications of Oilfield Jet Mud Mixer



Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matching Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Work Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Dimension 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm



11KW API Certified Mud Mixing Hopper 60m3/H Capacity TRSLH100 API Certificate 0



Package & Shipment



Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity.
Delivery: By truck, train, air, or sea.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
