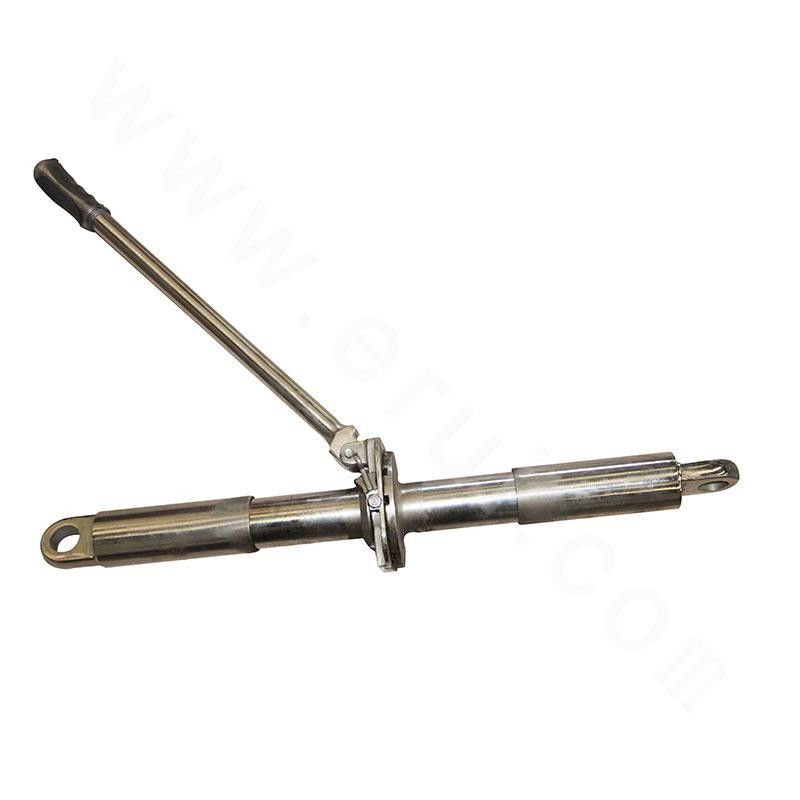

Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848

Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848
Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848 Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848 Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848

Large Image :  Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Q1, ISO 9001
Model Number: TRPS584-TH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: In stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 Pcs / Month
Detailed Product Description
Warranty: 12 Months Package: Wooden Case
Advantage: High Performance Applicable Shaker: BEM, Linear Shale Shaker
MOQ: 1 Pc Material: Carbon Steel
Part Number: G0005848 Function: Adjustable
High Light:

Shale Shaker Mechanical Jack Assembly

,

BEM Mechanical Jack Assembly

,

Drilling Adjustable Mechanical Jack Assembly

Mechanical Jack Assembly G0005848 for Shale Shaker



Product Overview



Mechanical jack is also called angle adjustment for shale shaker. There are mechanical adjustment, hydraulic adjustment, electrical adjustment. All of them can be adjusted during drilling without shut down. The mechanical one is popular since convenient and easy to operate. For mechanical one, we adjust the angle by handle wheel, or the handle lever. With the jack screw, the deck angle can be easily adjusted very soon by one person.



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and solid control equipment since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.



Why shale shaker need mechanical jack(angle adjustment)?



  • The size of the particles
  • The density of the drilling fluids
  • Feeding capacity
  • Drilling mud type
  • Shaker screen type
  • Shaker screen mesh



Advantages of Our Drilling Shale Shaker

  1. Martin or OLI vibration motor.
  2. Overall heat treatment, long time work.
  3. Hopper type feed mode reduces feed speed.
  4. Vibration strength is 7.5G, adjustable.
  5. Screen box angle is mechanical and adjustable.
  6. Schneider or Siemens electrical components.
  7. Wedge-type compaction device facilitates fast replacement of screen.

Technical Parameters of Drilling Shale Shaker



Model TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Adjustable BEM Shale Shaker Mechanical Jack Assembly G0005848 0



Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of varous oilfield equipment , including oil drilling and service equipment, solid control equipment, Oil production equipment, OCTG products, wellhead & downhole tools and spare parts. Our design and products are restrictly under API SPEC 7K/8C/6A. Our products have been already been export to USA ,South America, Africa, Europen, Russsia and other countries. Xi'An TianRui Petroleum Machinery Equipment Company Limited has built an excellent global distribution network and the capability of providing value added services to end users.



Our customers come from all over the world, mainly including the U.S., Canada, Republic of Korea, Philippines, Russia, Australia, Germany, India, Yemen, Egypt and so on. If you are interested in our products or any question, please feel free to contact us and look forward to cooperating with you.



FAQ:
1)Why choose us?
We can provide you best quality with reasonable price.
2)How can I know the material is correct and acceptable?
Material certificate (inspection certificate) is available on Request.
3)I cannot find the products I want on your site. Are you able to help me to locate it?
Yes, we will try our best to give you the product you want.
4) What products you are specialized in?
We are specialized in all kinds of tubing protectors.
