Product Details:
Payment & Shipping Terms:
|
| Size: | 60.3-117.8 Mm | Model: | Y Series |
|---|---|---|---|
| Material: | Carbon Steel | Product Name: | Slip Type Elevator |
| Working Pressure: | 0.6-0.8 Mpa | Package: | Wooden Case |
| Processing Type: | Forging | Color: | Red, Blue |
| High Light: | Oilfield Drill Slip Type Elevators,75T Slip Type Elevators,Forging Slip Type Elevators |
||

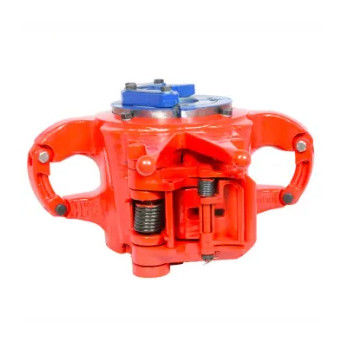

Oilfield Equipment Y Series Slip Type Elevators 75 Ton
Product Overview
Slip type elevators are holding and hoisting tools for handling drill pipe, casing, tubing in oil and gas field. They are especially fit to integral joint tubing, non-coupled casing, electric submersible pump and other tubular goods. The elevators are designed and manufactured according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment.
The Y series slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It's especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The slip type manual elevators for tubing (YT, MYT) and casing (YC, HYC, MYC). The elevators hoist a variety of small casing and tubing with the proper size slips and slip setting ring installed. The slips are easily changed.
The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
.
Our Service
As the distributor, we are working with large rig companies and heavy equipment manufacturers for the below products:
Product Specifications of Our Slip Type Elevator
| Model | Size | Rated Cap. | |
| mm(in) | kN | short Tons | |
| HYT | 60.3-88.9(23/8-31/2) | 1350 | 150 |
| YT |
33.4-88.9(1.315-31/2) |
675 | 75 |
| MYT | 33.4-73(1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4(1.05-11/16) | 180 | 20 |

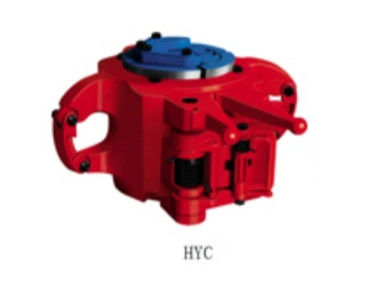

| HYC | 88.9-139.7(31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8(31/2-7) | 1125 | 125 |
| YC | 88.9-117.8(31/2-7) | 675 | 75 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Our main products include drilling rig, workover rig, no-guyline workover rig, anchoreless workover rig, multi-function workover rig, speical vichile, and the other parts which together with the main rig, like the wellhead tools, down hole tools, drill bit,etc.
On the basis of high quality, suitable price, delivery fast and on time, professional technical service, insisting on the principle of "abide by contracts and keep one's words credit and promise", "win-win". We have built good long-term business relationship with the drilling companies and suppliers all over the world. Now, our equipments have been supplied to international markets including North American, South American, Europe, Middle East, Russia, Turkey, India, Kazakhstan etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
