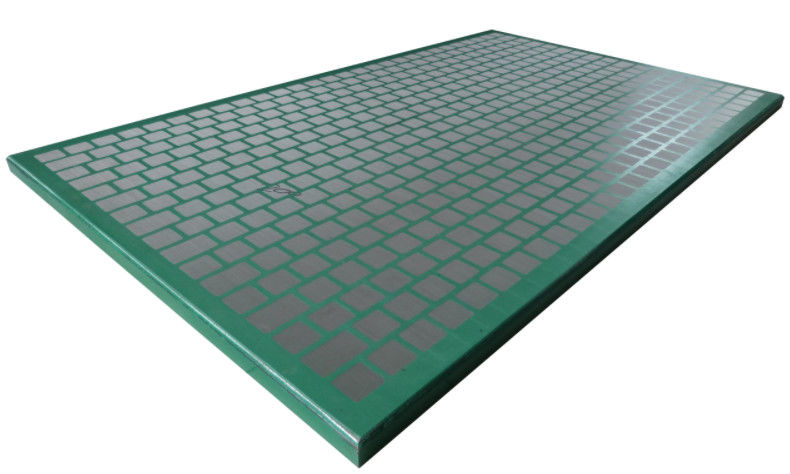

FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids

FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids
FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids

Large Image :  FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API 13C, ISO9001 Certificate
Model Number: TRF-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Carton box and wooden case
Delivery Time: 7 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000 pcs/month
Detailed Product Description
Dimension: 1067 ×737 Mm Screen Material: S.S.316
Frame Material: Steel Frame Mesh: API200-API325
Layers: 2-3 Layers Weight: 16 Kg
Suitable Shale Shaker: FSI 5000 Shaker Application: Oil And Gas Drilling
High Light:

Steel Frame Shale Shaker Screen

,

FSI 5000 Shale Shaker Screen

,

Drilling Fluids Shale Shaker Screen

FSI 5000 Steel Frame Shaker Screen For Drilling Fluids



Product Introduction

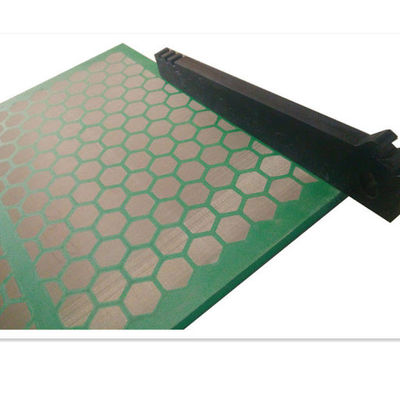

FSI 5000 Shaker Screen is manufactured as the replacement screen for FSI 5000 series shale shake from fluid system INC. Steel frame Shaker Screens are commonly used in shakers with wedge fastening system. There are wedge blocks used for fastening the screen panels, and result in simple visual checks of screen panels, the repair and maintenance work is easier and time saving. Besides, we master excellent rubber strip seal glue technology to prevent rubber sealing loose and leakage.



TR Solids Control adopts advanced technique internationally and mechanized production methods to produce our own TR brand shaker screens and replacement screens for international famous brand. Our screens are alternative from API 20 to API 325. Our screens are with long service life, good separation effect, and up to API standard.



Advantages of Our FSI 5000 Steel Frame Shaker Screen



  1. Current design, technical expertise.
  2. Reliable & effective for drilling slurry purified equipment.
  3. SS 304/316/316 L wire mesh cloth is corrosion & wear-resistant.
  4. Manufactured according to the API RP 13C (ISO 13501).
  5. Scientific & reasonable cost control system for competitive price.
  6. Adequate inventory in the shortest time to meet customers' demand.


Technical Parameters of FSI 5000 Steel Frame Shaker Screen



Product name FSI 5000 steel frame Shale Shaker Screen for drilling fluids solids control
Wire mesh material SS304 SS316 or customized as customers demands
Size 1067 X 737 mm
Weight 16 kgs
Screen layers 2 or 3 layers
Mesh count 20-325mesh
Advantages

Corrosion-resisting, heat-resisting, wear-resisting

Long working life, higher flow rate

Easy disassembly, rating of temperature, good performance Conductivity (powder) liquid, trapping (dreg) effect is good

Current design, technical expertise

API compliant shaker screens



FSI 5000 Steel Frame Shale Shaker Screen For Drilling Fluids 0



Adaptable Shale Shaker Model


Our FSI 5000 shaker screen are used as the substitute screen for:

  • FSI series 5000 BSBS Linear Power Side-By-Side Shaker.
  • FSI series 5000B DHC Double Header Mud Cleaner.
  • FSI series 5000B CD VGS? Linear Cutting Drier.

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. strives for the existence by qualiy, for development by reputation. Our company has high quality products, best prices and reliable after-sale services. On the basis of mutually beneficial and friendly cooperation. We really hope to establish good business relationship and create a better future with old and new customers at home and abroad .



All listed shaker screens are right fit replacement panels but not the original ones. Furthermore, the M-I SWACO, NOV, , KEMTRON, TRI-FLO, FSI, VORTEX, NATIONAL, FLC, MONGOOSE, etc. are the marks and reserved by original shaker screen manufacturer. All information is just as a reference.



Competitive Advantage


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
