|Mesh:||API 25-API 325||Model:||TH48-30 X 0.5MT|
|Hardness:||85-95A||Hole Shape:||Square, Rectangle|
|Life Time:||6 Month - 12 Month||Color:||Orange /Red|
PU Polyurethane Shale Shaker Screen,
Fine Mesh Shale Shaker Screen,
0.075mm Mining Shale Shaker Screen
PU High Frequency Fine Vibrating Screen for TH48-30
Polyurethane screens at TR Solids Control, including the hook strap one, the framed one. Hook strap ones are usually used to replace Polyweb screen. The most popular dimension is 1044x702mm. And popular openings are 0.85mm, 1mm, and 1.2mm.
The openings for such PU screen ranged from 0.075mm to 1.0mm. Among these apertures there are screens with length way and cross way, also some of them only have yarn embedded in cross side.

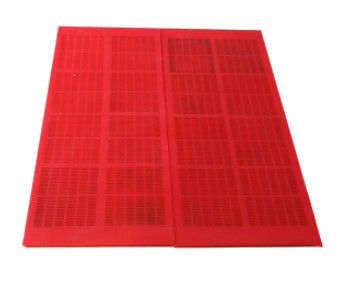

Furthermore, we have the Urethane shaker screen made by polyurethane and steel frame inserted. Such design provide more hardness and exact separation point for certain operation. Another polyurethane screen panel is the whole plate punched with square or circle hole.
Different Use of PU Screens
They can be used in drilling fluid process for HDD industry. Also they can be used on mining screening machine. Including the metal or non-metal. According to the material to be filtered there are different compounding on screen panels.

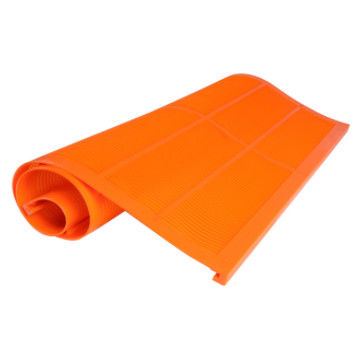

For the slurry or desanding separation plant, most clients use hook strap PU screen as the picture shown. Such screens can be used as long as 6-8 month and even longer.
Technical Parameters of TR Polyurethane Screen
|Products Name||TH48-30 Screen for shale shaker|
|Mesh Range||40-325 Mesh|
|Dimension||Green & Black|
|Feature||Effective Filtering Area & Long Working Life ,Shale Shaker Screen|
|Application||Drilling, Oil & Gas Filtration, Mud Filtration|
TR shale shaker screens are available for the FLC Series. Brandt VSM, Cobra Series, Swaco Mongoose and KEM-TRON shale shakers, and we accept customized shale shaker screen, we has been the leading China OEM supplier of quality, high performance screening surfaces for over 20 years.
How to order PU screens from TR?
1. Tell us the dimension or original screen part number.
2. Screen opening size or aperture size.
3. Wish yarn or not? (If framed, there is no yarn inserted).
4. Quantity you need.
5. Other special requirement?
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
