| Model: | 80YZ50-20 | Flow: | 60m3/h |
|---|---|---|---|
| Lift: | 17.5m | Speed: | 1440r/min |
| Motor: | 7.5kw | Appllication: | Oil & Gas Drilling, Trechless HDD & Tunnel, Drilling Waste Management |
| High Light: | submersible sludge pump,submersible sewage pump |
||

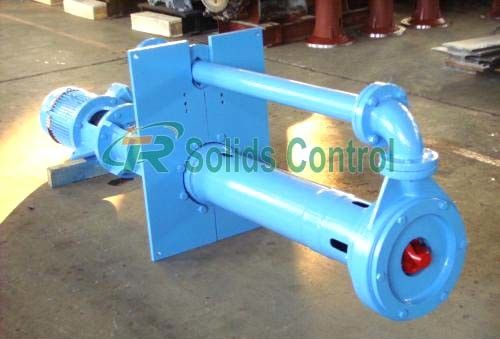

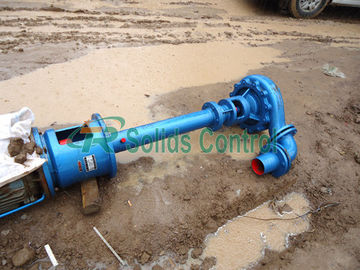

7.5KW Drilling Waste Management Feeding Submersible Slurry Pump
Main Introduction
Submersible slurry pump normally is used for feeding shale shaker for CBM, HDD or other drilling industry. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m but TR submersible slurry pump can be customized.
Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Our Submersible Slurry Pump adopt SS304 material to achieve a good seal effect, environmental protection,characteristics of Low noise, no pollution, smooth operation. No bearing and shaft seal between the impeller and the pump body underwater , so it is free-maintenance, durable for high temperature, then it is the ideal equipment to transport the greater medium of solid particles and provide impetus for the decanter centrifuge.
Main Characterstics of TR Submersible Slurry Pump
Main Specifications of YZ Series Submersible Slurry Pump
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
TR Solids Control is a well-known manufacturer of submersible slurry pump in China for over 10 years. Our submersible slurry pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. We are welcome your inquiry and consulting!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
