|Basket Gap:||0.25-0.5mm||Rotary Speed:||900r/min|
|Air Inlet Pressure:||0.69MPa||Air Tool Air Supply:||1.8m3/min|
|Fuel Tank Volume:||60L||Main Motor Power:||55kw|
|Oil Pump Power:||0.55kw||Dimension:||2750*2130*1800mm|
vertical drying range machine
Oil Field Drilling Mud Waste Management Vertical Cutting Dryer, API certified

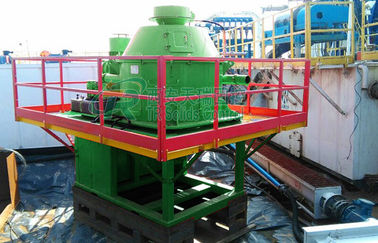

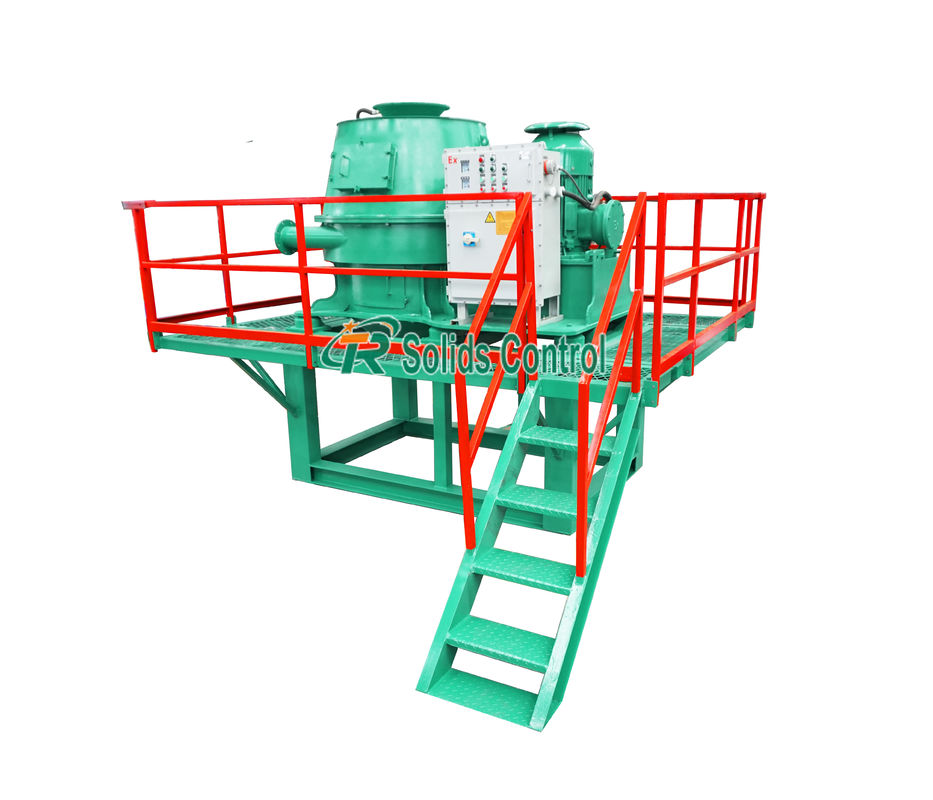

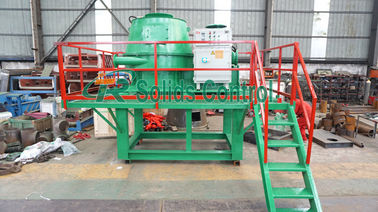

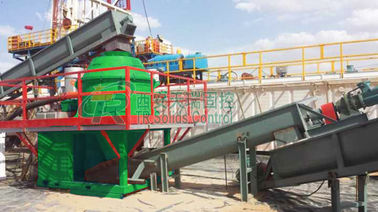

TRCD series vertical cutting dryers are oil sludge dryers for handling oilfield mud, and can be called vertical centrifuges from their structure. They are equipped with advanced design, good treatment effect and long service life. They belong to environmental protection equipment in oilfield mud industry.
Our vertical cutting dryer uses centrifugal force to dry drilling solids in oil or synthetic base fluids. A stainless steel screen bowl traps “wet” solids and accelerates them up 900RPM with G force to 420G or super high speed 1200RPM with G force to 750G. It's one of the most widely used vertical centrifuges in the treatment of cuttings and waste disposal, and also very important solid control equipment in drilling waste management. It can deal with large numbers of waste sediment efficiently and fast, and reduce the oil and water content of the cuttings effectively. After its treatment, the oil content (OOC) of cuttings is below 5%. They are up to the international drilling fluid cuttings discharge standard, and meet the increasingly stringent environmental protection requirements.
In addition, vertical cutting dryer can recycle a large proportion of synthetic mud and oil-based mud, reducing waste emissions effectively, meanwhile improving the use of waste. TRCD series vertical cutting dryer can recover the oil cuttings in the composition, and processing capacity is 30-50 tons per hour, oil content of cuttings after treatment is generally less than 3%.
TR vertical cutting dryer is widely used in these industries: Drilling Waste Management, Oil and Gas Drilling, Trenchless HDD & Tunnelling, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Bored Pile.
Advantages of TRCD Series Vertical Cutting Dryer
Technical Data of TRCD Series Vertical Cutting Dryer
|Rotary Speed||900 r/min||0-900 r/min|
|Air knife Air Inlet Pressure||0.69Mpa|
|Air Tool Air Supply||1.8m3/min|
|Fuel Tank Volume||60L|
|Main Motor Power(Kw)||55Kw|
|Oil Pump Power(Kw)||0.55Kw|
