Oilfiled Drilling Fluids Shear Pump Solid Control Green Color 55kw Motor

Oilfiled Drilling Fluids Shear Pump Solid Control Green Color 55kw Motor
Oilfiled Drilling Fluids Shear Pump Solid Control Green Color 55kw Motor
video play

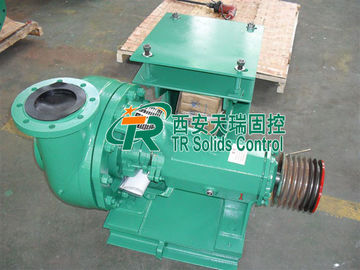

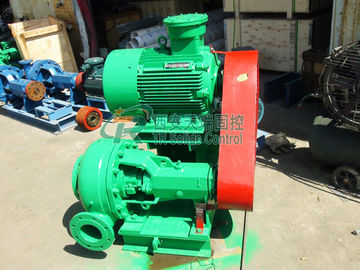

Large Image :  Oilfiled Drilling Fluids Shear Pump Solid Control Green Color 55kw Motor

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB6545
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 150m3/h Lift: 45m
Motor: 55kw Weight: 980kg
Dimension: 1050*1000*1360mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

drill fluid pump

,

cutter pump

Oilfiled Drilling Fluids Shear Pump , Solid Control Shear Pump



Product Description



Our shear pump is used to treat the high property mud, making the mud to obtain good rheological properties and to cut the drilling cost as much as possible. Nowadays it is widely used in trenchless HDD, oil & gas drilling, city bored piling, tunnelling construction, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, Water Drilling, Coal Bed Gas Solids Control System etc.



As one very important equipment within the drilling fluid circulating system, shear pumps perform the dual function of cutting and pumping, making the drilling fluid ideally suited for every drilling requirements of reducing solids size and protection of it's downstream equipments.



Prior to entering into the drilling fluid, polymer are chopped and reduced in size with ideal efficiency to keep polymer particles perfectly contact with water, finally to accelerate the dissolving, dispersion and hydration process .Using shearing pump to treat the drilling fluid is favorable for increasing drilling operation,improving quality of drilling fluid, reducing the drilling cost and time,and reducing the labor intensity.



Key Benefits of TRJQB Shear Pump

  1. Using special impeller and shear board, shear efficiency> 95%.
  2. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  3. Pump body adopts wear-resistant alloy cast iron, with longer service life.
  4. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  5. Bearings are internationally renowned brands SKF, quality assured.

Techncial Info. of TR Shear Pump



Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm



Oilfiled Drilling Fluids Shear Pump Solid Control Green Color 55kw Motor 0



Featuring our unique, high efficiency anti-fouling chopping impeller, they simultaneously shear and pump the most difficult solids, reduce bentonite cost more than 20%, moreover, significantly improve the filtration loss property and mud cake quality to generate a better gelatification effect, more effectively protecting the bore wall and prevent from production zone contamination.



Our shear pump can make polymer shear dilute and hydrate The polymer used in mud has a high molecular weight and is difficult to be hydrated directly. Therefore, the polymer needs to be pre sheared. Shear pump can provide high shear efficiency and accelerate the process of polymer dilution and hydration.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.



Company Tenet



Customer's satisfaction is the highest pursuit of TR Solids Control.
