Product Details:
Payment & Shipping Terms:
|
| Specification: | 1050×1000×900mm | Weight: | 450kg |
|---|---|---|---|
| Motor: | 18.5kw | Type: | Shear Pump |
| High Light: | drill fluid pump,cutter pump |
||

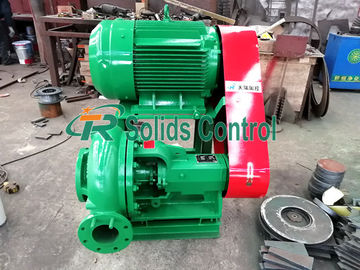

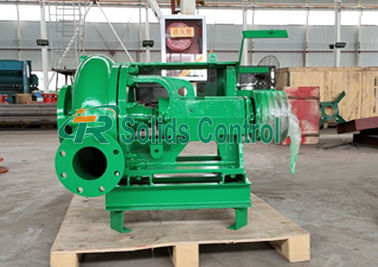

API Standard 18.5KW Shear Type Pump for Oil Gas Well Drilling
Brief Introduction
Shear Pump is used as a mixer in drilling fluids solids control, belongs to centrifugal pump. GN JQB Shear pump including JQB6545,JQB6535,JQB4330,JQB4325,JQB3228,etc. TRJBQ serial shear pump is a special pump for solid-control drilling fluid additives, with 4 specifications, suitable for power grids of 50Hz and 60 Hz, and it has both Metric and British systems as measuring standards.
TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling & trenchless tunnelling construction.
Main Specialities of TR Mud Shear Pump
Main Parameters of TR Shear Pump
| Model | Flow Rate | Lift | Motor | Weight | Dimension |
| TRJQB6545 | 150m3/h | 45m | 55kw | 980kg | 1050×1000×1360mm |
| TRJBQ6535 | 100m3/h | 35m | 37kw | 800kg | 1050×1000×1230mm |
| TRJBQ5430 | 60m3/h | 30m | 30kw | 650kg | 1050×1000×1100mm |
| TRJBQ4330 | 40m3/h | 30m | 18.5kw | 450kg | 1050×1000×900mm |
Advantage of Our Shear Pump
Maintain and enhance the excellent hydration effect of bentonite particles. Shearing pumps effectively accelerate the dispersion of bentonite to increase the surface contact area and ion exchange frequency of the particles, thereby to generate a better hydration velocity and drilling fluid rheological property. Particularly for offshore drilling with sea water drilling fluid.
TR Solids Control is a professional manufacturer engaged in shear pump with rich experience. Our shear pump can mix high property drilling mud very soon. Decrease the mixing time by much and enhance the drilling efficiency with great cost control, shear pump helps much on high quality drilling mud demand for well drilling.
TR shear pump adopts high quality mechanical seal with high durability. There won’t be any leakage. When drilling fluids flows pass shearing pump, there will be second cutting on the 50% fluid in the swirl collection room. Sometimes clients will require shearing mixing pump combined with shearing pump and mixing hopper.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
