Product Details:
Payment & Shipping Terms:
|
| Body Diameter: | 800m | Vacuum Degree: | -0.03~-0.045Mpa |
|---|---|---|---|
| Degassing Efficiency: | ≥95% | Vacuum Pump Power: | 3kw |
| Ex Standard: | Exd II Bt 4 / IECEX / A-TEX | Capacity/Flow Rate: | 270m3/h |
| Transmission: | 1.68 | Main Power: | 22kw |
| Impeller Speed: | 870r/min | Dimension: | 2000*1000*1670mm |
| High Light: | vacuum degassing unit,vacuum degassing machine |
||

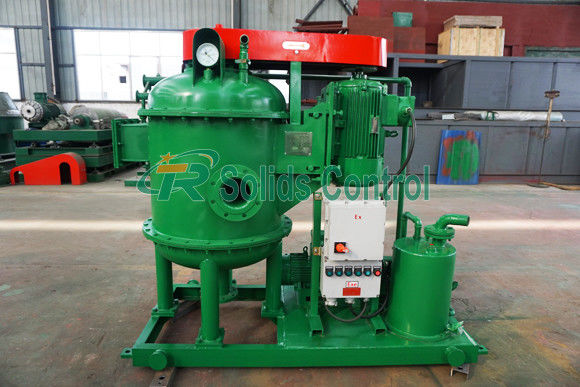

270m3/h High Standard Horizontal Control Vacuum Degassing Machine For Sale
Introduction
Vaccum Degasser is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. These units are positioned downstream from mud/gas separators, gumbo removal equipments (if utilized), and mud conditioners (if utilized), whiler and follow in the arrangement. Our degasser is a special purpose product for gas treatment in drilling fluids. This unit is positioned downstream from shale shaker, mud cleaner and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement. It is used to remove small entrained gas bubbles left in the mud by mud gas separator.
The vaccum degasser structure design is scientific and rational. So that we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth. Vacuum degasser plays the role of agitation on drilling fluid. Based on universal design, our vacuum degasser can be customized according to customer's practical demand.
Characterstics of TRZCQ Vacuum Degasser:
Main Parameters of Drilling Vacuum Degasser:
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Handling Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Our Services
1. Customized configurations available.
2. Engineers available to service machinary overseas.
3. Productive process are visible by vedio & pictures.
4. Fast reaction to clients' needs.
5. Plenty of goods & spare parts.
Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
