Product Details:
Payment & Shipping Terms:
|
| Capacity: | 30-50T/h | Basket Gap: | 0.25-0.5mm |
|---|---|---|---|
| Air Inlet Pressure: | 0.69MPa | Fuel Tank Volume: | 60L |
| Oil Pump Power: | 0.55kw | Basket Diameter: | 930mm |
| Rotary Speed: | 0-900r/min | Air Tool Air Supply: | 1.8m³/min |
| Main Motor Power: | 55kw | Dimension: | 2750*2130*1800mm |
| High Light: | vertical dryer,vertical drying range machine |
||

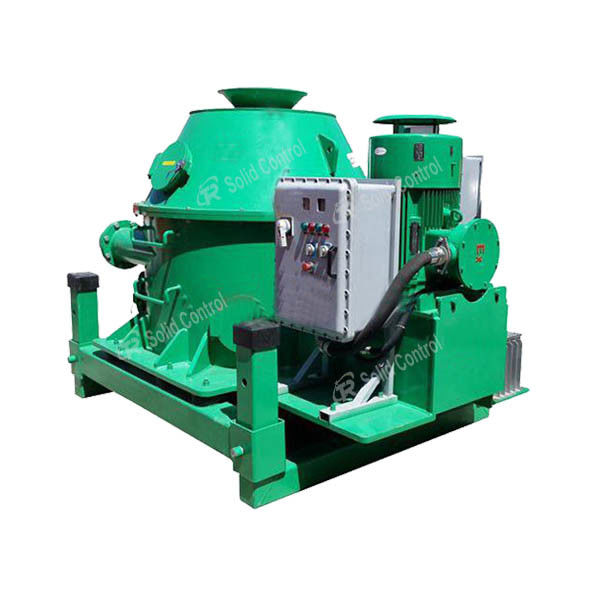

Large Capacity Mud Vertical Cutting Dryer 55kw For Oil Mud Seperation
Main Introduction
Drilling vertical cutting dryer is a very important solids control equipment in drilling waste management system. It can deal with large numbers of waste sediment quickly and efficiently, and reduce oil and water content from the cuttings. After treatment, the oil content (OOC) of cuttings can be below 5%. They conform to the international drilling fluid cuttings discharge standard, and meet the increasingly stringent environmental protection needs.
Generally vertical cutting dryer can recycle a large proportion of synthetic slurry and oil-based mud, reducing waste emissions effectively. Meanwhile it improves the use of waste. TRCD series vertical cutting dryer can recover the oil cuttings in the composition, and processing capacity can arrive 30-50 tons per hour, oil content of cuttings after treatment is generally less than 3%.
Mud vertical cutting dryer is a kind of drying machine for treating slurry in oilfield. It can be called vertical centrifuge from its structure. It is characterized by advanced design, efficient treatment and long service time. Vertical cutting dryer belongs to environmental equipment among oilfield mud solids control equipment. TR Solids Control can supply two kinds of vertical cutting dryer--fixed frequency & variable frequency.
Application
Vertical cutting dryer is mainly used in Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil and Gas Drilling, Drilling Waste Management, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Pile.
Advantages of TRCD Series Vertical Cutting Dryer
Technical Data of TRCD Series Vertical Cutting Dryer
| Model | TRCD930C | TRCD930B-VFD |
| Capacity(T/h) | 30-50T/h | |
| Basket Max.Diameter | 930mm | |
| Basket Gap | 0.25-0.5mm | |
| Rotary Speed | 900 r/min | 0-900 r/min |
| Air knife Air Inlet Pressure | 0.69Mpa | |
| Air Tool Air Supply | 1.8m3/min | |
| Fuel Tank Volume | 60L | |
| Main Motor Power(Kw) | 55Kw | |
| Oil Pump Power(Kw) | 0.55Kw | |
| Weight | 5900kg | 6000kg |
| Dimension | 2750*2130*1800mm | |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
