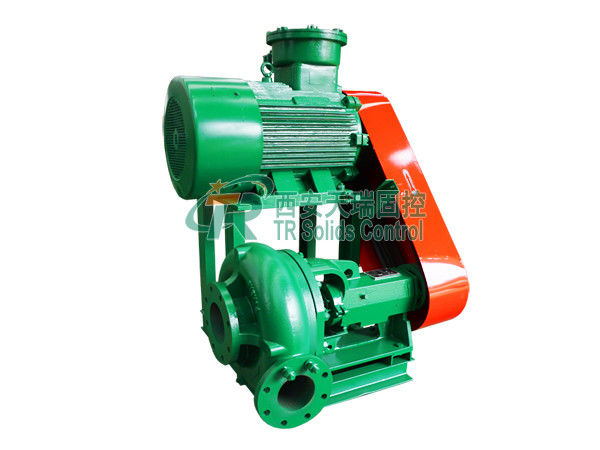

Drilling Fluid Low Shear Centrifugal Pump 30000W Motor Powered

Drilling Fluid Low Shear Centrifugal Pump 30000W Motor Powered
Drilling Fluid Low Shear Centrifugal Pump 30000W Motor Powered
video play

Large Image :  Drilling Fluid Low Shear Centrifugal Pump 30000W Motor Powered

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRJQB5430
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000 Sets / Month
Detailed Product Description
Material: Steel Color: Green
Flow: 60m3/h Lift: 30m
Motor: 30kw Weight: 650kg
Dimension: 1050×1000×1100mm Application: Oil & Gas Drilling, Trenchless HDD & Tunnelling
High Light:

cutter pump

,

high shear pump

API Drilling Fluid Shear Pump in Solid Control System , Mud Shear Pump Manufacturer



Introduction



TRJQB series Shear Pump is a new type equipment which provides the fast configuration and treatment mud for users. Our clients are satisfied with its configuration. TR Shear Pump can mix effectively and hydrate completely the material added in the drilling fluid, save the mud material, reduce the time of configuration, and provide the high performance mud for the well drilling.



Our shear pump design has a special impeller structure, which produces a strong shear force when liquid flows. By smashing and dispersing chemical particles, soil and other solid phase in liquid flow, so that the liquid in the solid phase broken and distributed evenly. This ideal solids control equipment designed by TR’s engineers has high performance and gains customer’s high evaluation.



Features of TRJBQ Series Shear Pump

  1. Material of mechanical seal is carbide alloy, its life is 5 times than normal.
  2. Pump shell wall is thick, made by casting mold. Wear-resistant, fine appearance.
  3. Bearings use internationally renowned brands SKF, quality assured.
  4. Oil seal adopts imported fluorine plastic seal, with good cooling capacity.
  5. Using special impeller and shear board, shear efficiency> 95%.
  6. Pump body adopts wear-resistant alloy cast iron, with longer service life.



Model Flow Rate Lift Motor Weight Dimension
TRJQB6545 150m3/h 45m 55kw 980kg 1050×1000×1360mm
TRJBQ6535 100m3/h 35m 37kw 800kg 1050×1000×1230mm
TRJBQ5430 60m3/h 30m 30kw 650kg 1050×1000×1100mm
TRJBQ4330 40m3/h 30m 18.5kw 450kg 1050×1000×900mm



Drilling Fluid Low Shear Centrifugal Pump 30000W Motor Powered 0



Our shear pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.


TR Solids Control exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing“Made in China”as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company's goal.



Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.



Company Tenet



Customer's satisfaction is the highest pursuit of TR Solids Control.
