Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine

Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine
Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine
video play

Large Image :  Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRCS250-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Pcs / Month
Detailed Product Description
Capacity: 200m3/h Hydrocyclone Specs: 10"
Hydrocyclone Qty: 2pcs Working Pressure: 0.25-0.4Mpa
Inlet Diameter: DN150mm Outlet Diameter: DN200mm
Separation Point: 45um-75um Bottom Shaker: TRTS60
Weight: 760kg Dimension: 1510*1360*2250mm
High Light:

desanding machine

,

sand removal system

Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine



Product Introduction



Mud desander has already been one of TR’s main products that ever requested very often from clients. TRCS series desander overcomes the shortcomings of the original desanding process. It consists of inlet pipe, desanding hydrocyclone, underflow shaker and discharge port. TR’s desander is with advantages of high quality hydrocyclones, strong separation ability, large capacity, small noise, long service time and easy maintenance. They are getting more and more attention from clients.



TR Solids Control is a main manufacturer of mud desander. TRCS Series Mud Desander is made to make sure sand is completely isolated from drilling fliuds. Our desander has been optimizing processed to match the modern drilling system demands.



Design Principle



TR desander is manufactured by an innovated design, careful engineering, quality materials and finest workmanship which comprising 8, 10, and 12 inches cone diameter. Our desanders have various capacity based on its diameter.

Operation Mechanism



Desander includes two 12-inch(305-mm) diameter polyurethane hydroclones slant mounted over the shaker. Each desander clone includes four replaceable wear resistant polyurethane sections that are joined together with quick release stainless steel clamps. The desander is furnished with an 8-inch(203-mm) diameter feed manifold and a 10-inch (254-mm) diameter discharge manifold and a 0-60 psi (4.1-bar) pressure gauge. The desander also includes a solids discharge trough to distribute the hydroclone underflow evenly onto the screening surface.



Technical data of TRCS series desander



Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.



Personalized Hydrocyclone Drilling Mud Desander , Bottom Shaker Desanding Machine 0



Product Application

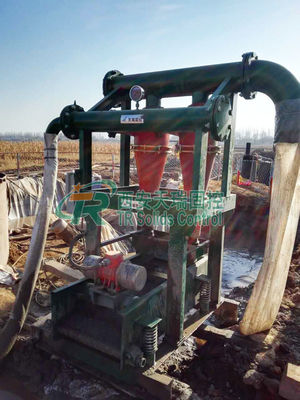

TRCS Series Mud Desander is widely used in trenchless HDD, oil & gas drilling, Drilling Waste Management, city bored piling, tunneling construction, mining, environment protection, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, Water Drilling etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
